Honeycomb geocell for driveway

Introduction to Honeycomb Geocell for Driveway

1. Overview

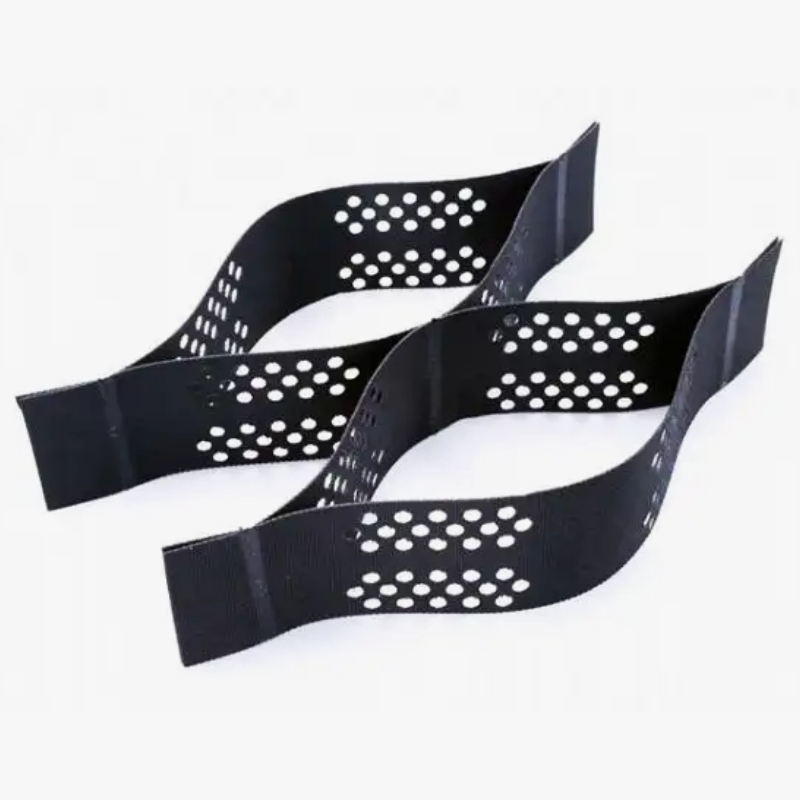

Honeycomb geocell for driveway, also known as cellular confinement system, is three-dimensional HDPE honeycomb geosynthetic material specially applied for driveway base stabilization.

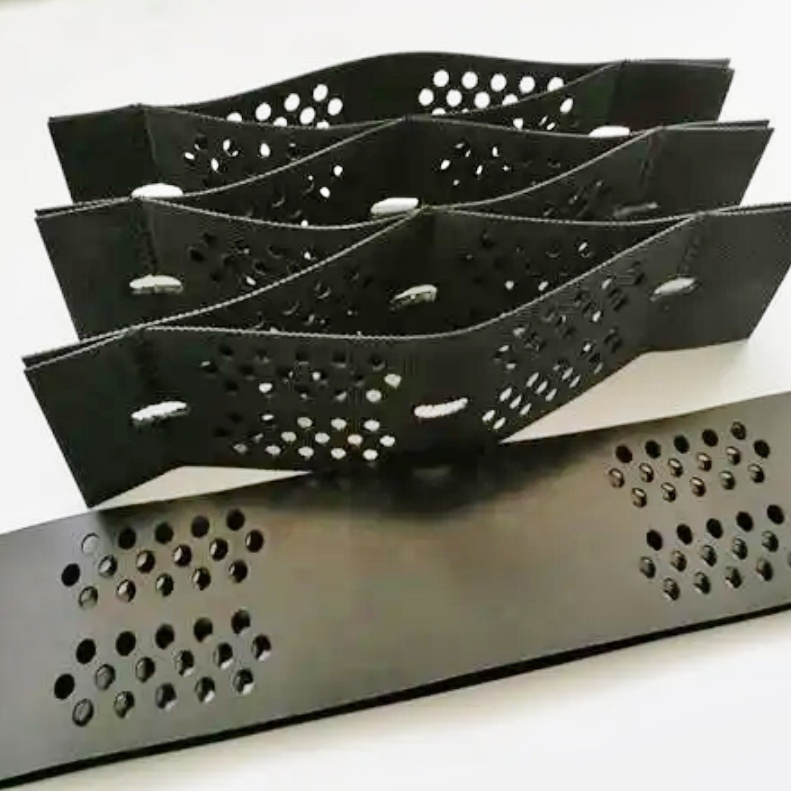

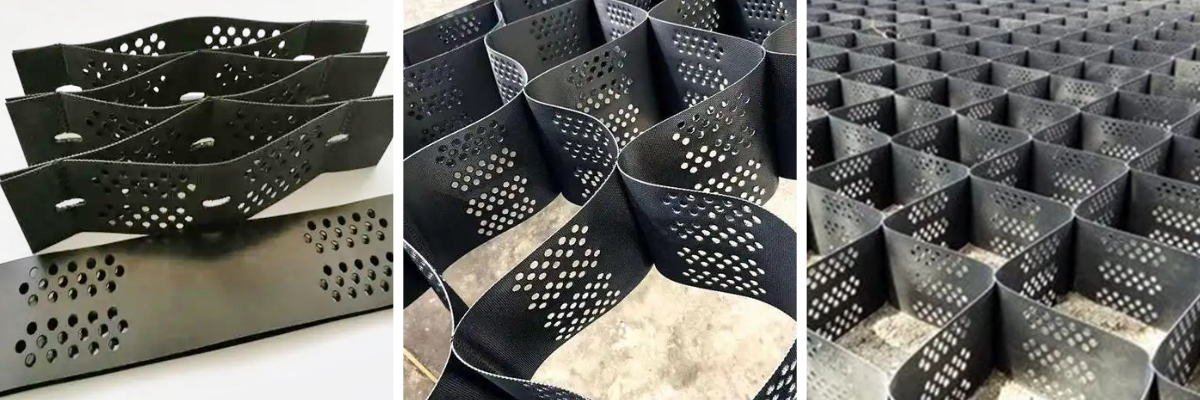

After unfolding the folded honeycomb geocell on site and anchoring it, the interconnected cellular cavities are filled with crushed stone, gravel, recycled aggregate or turf soil. It forms an integrated load-bearing mattress to build stable gravel driveways, permeable access roads and light-duty parking areas, effectively solving frequent problems such as aggregate shifting, rutting, uneven settlement and surface ponding on unpaved driveways.

2. Material & Recommended Specifications for Driveway Projects

Manufactured from modified virgin HDPE with UV stabilizers and anti-oxidants to resist outdoor aging.

Recommended parameters:

- Cell height: 100 mm / 150 mm (main options for driveways)

- Sheet thickness:

  ✅ 1.0–1.2 mm: Private driveway for passenger cars

  ✅ 1.2–1.5 mm: Driveways bearing pickup trucks, small trailers and frequent vehicles

- Surface selection

  • Solid textured honeycomb geocell: Dry sites, pure gravel driveway

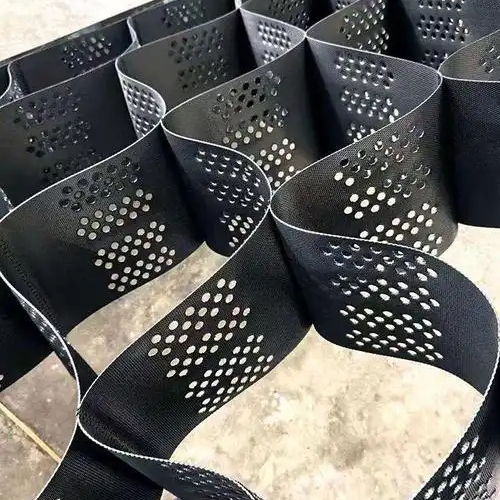

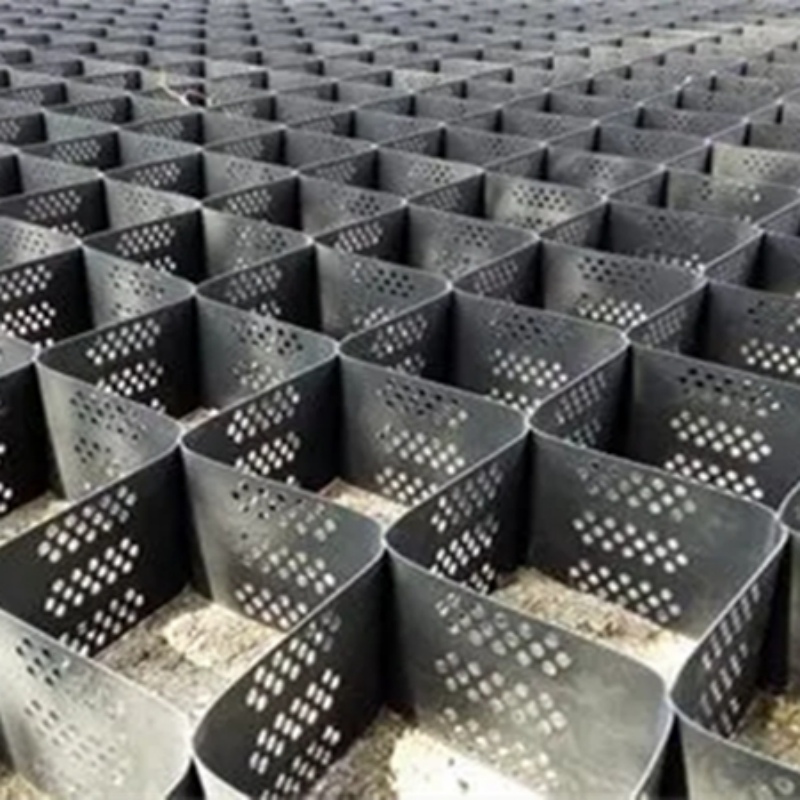

  • Perforated honeycomb geocell: Low-lying areas with poor drainage, grass-filled permeable driveway

- Weld peel strength: ≥8 kN/m

3. Working Mechanism

1. Lateral Confinement Effect

Independent honeycomb chambers lock infill aggregate and restrict outward movement of gravel under vehicle rolling. No more wandering gravel, ruts and potholes.

2. Uniform Load Dispersion

Concentrated wheel load is distributed over a larger subsoil area, lowering vertical stress and reducing differential settlement on clay, silt and backfilled soft ground.

3. Natural Water Infiltration

Rainwater seeps through gaps between fillers into underground soil. It creates a fully permeable driveway, eliminates surface ponding and reduces surface runoff without additional drainage pipelines.

4. Main Advantages

1. Eliminate gravel displacement and rutting

Far more stable than loose gravel pavement; greatly cut later maintenance and gravel replenishment work.

2. Adapt to poor and soft subgrade

Excellent solution for sites where traditional gravel roads easily sink and deform.

3. Eco-friendly permeable pavement

Avoid hard-sealed concrete; meet environmental requirements for rainwater infiltration.

4. Flexible installation & cost-efficient

Lightweight for manual laying; local gravel can be adopted as filling material to save transportation cost.

5. Diversified surface options

Support three common schemes: exposed gravel driveway, grass-filled turf driveway, or thin asphalt overlay.

6. Flexible structure

Accommodate slight foundation deformation without cracking, delivering long service life.

5. Typical Application Scenarios

- Residential private driveways & villa access roads

- Farm, ranch and rural access driveways

- Campground internal passages and light parking lots

- Holiday cabin temporary driveways

- Light-load yard access lanes

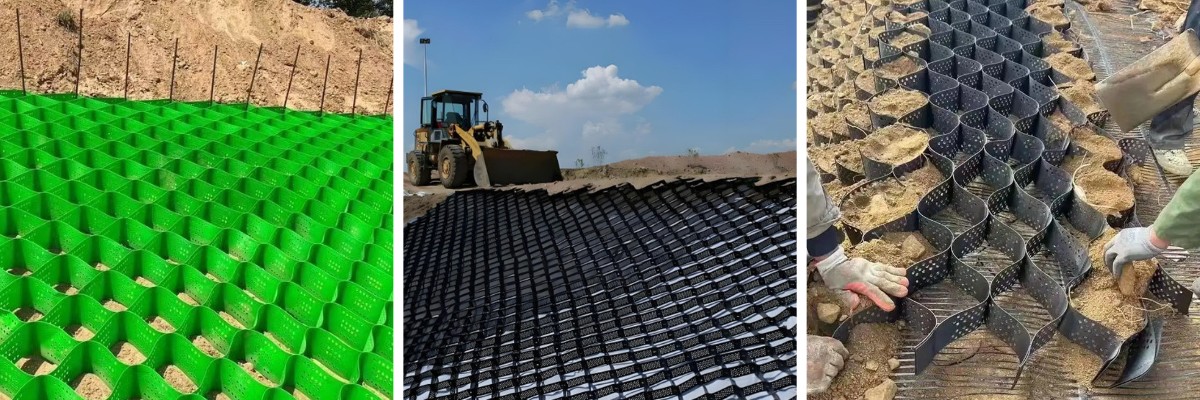

6. Standard Construction Procedure

1. Excavate and clear the driveway foundation; remove mud, vegetation and loose debris.

2. Level and compact subsoil; lay non-woven geotextile as separation layer to prevent soil mixing with aggregate.

3. Fully unfold honeycomb geocell; fix edges, joints with U-shaped steel ground nails to prevent shrinkage.

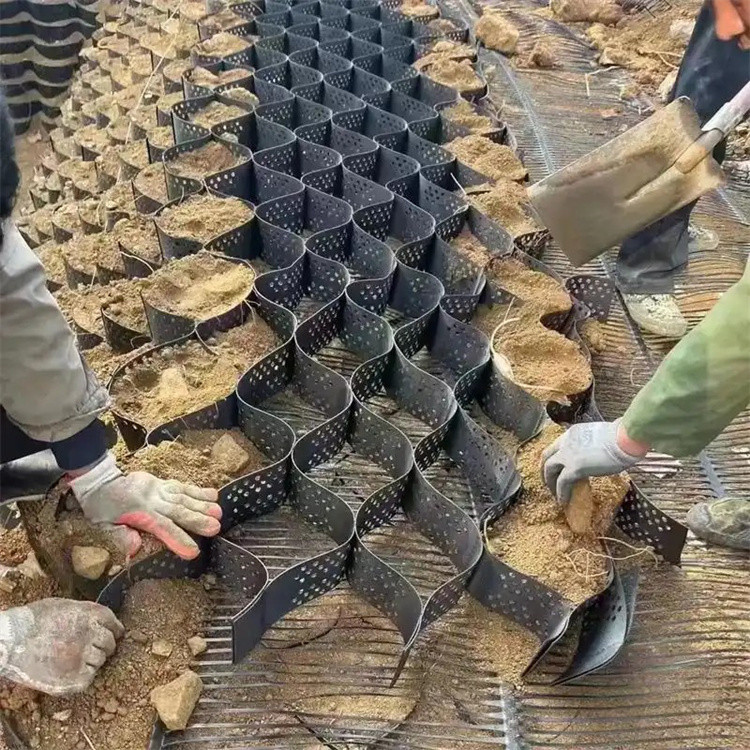

4. Fill graded aggregate into cells, vibrate and compact layer by layer.

5. Carry out surface finishing: spread top gravel, plant turf or pave thin asphalt as designed.
