Plastic Honeycomb Geocell (HDPE Plastic Geocell) Full Introduction

1. Basic Definition & Production

Plastic honeycomb geocell, short for geocell, is a three-dimensional honeycomb-shaped geosynthetic material, mainly made of high-density polyethylene (HDPE) (minor PP/polyester versions available).

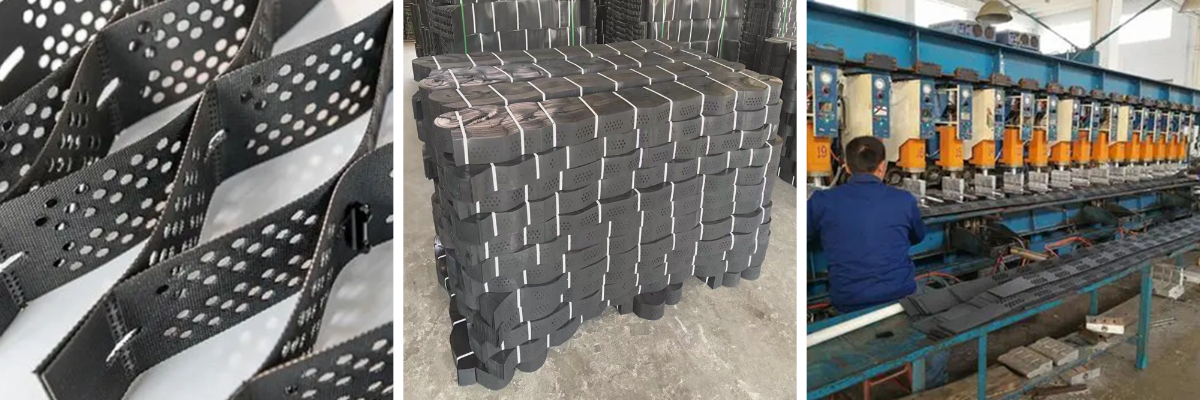

Manufacturing Process

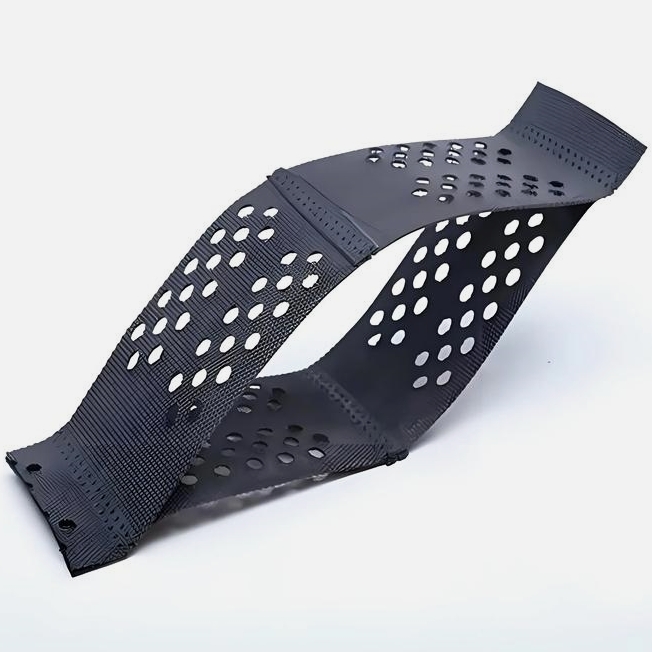

· High-strength HDPE sheets (textured or perforated) are connected via ultrasonic hot welding, lock buckle or integrated molding to form continuous cellular units.

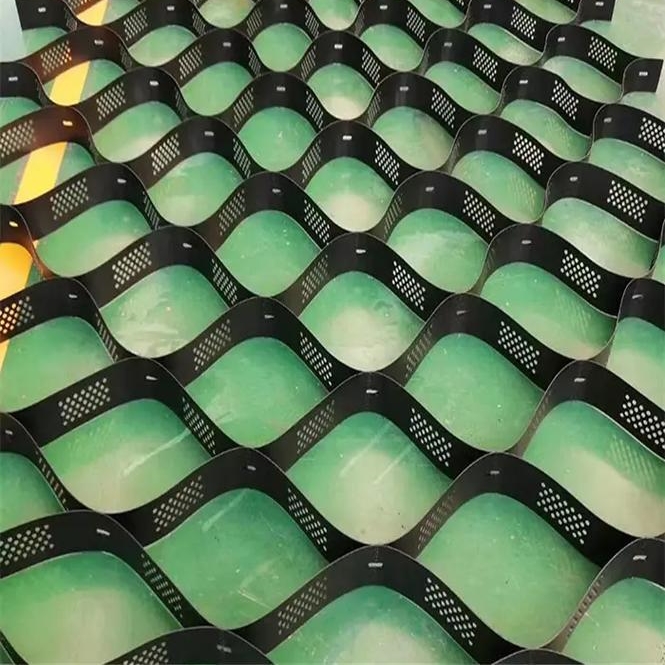

· It is foldable and compact for transportation; expand on-site to form a stable honeycomb grid, then filled with soil, gravel, aggregate or concrete to form a rigid reinforced composite layer.

· Compliant standard: GB/T 19274-2024 (Chinese national standard for plastic geocells).

2. Core Technical Specifications

Main Sizes

· Cell depth (height): 50mm / 100mm / 150mm / 200mm / 250mm / 300mm (the most widely used: 100–200mm)

· Welding pitch (cell span): 330mm, 400mm, 500mm, 660mm, 800mm, 1000mm

· Sheet thickness: 0.8mm ~ 2.0mm (heavy-load projects adopt ≥1.5mm)

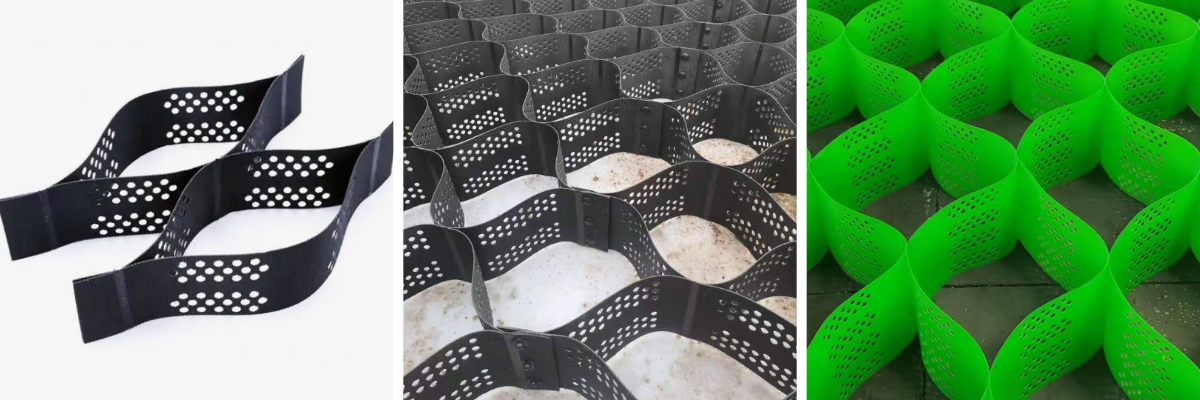

· Colors: Black (UV anti-aging), green, tan/brown, customized colors

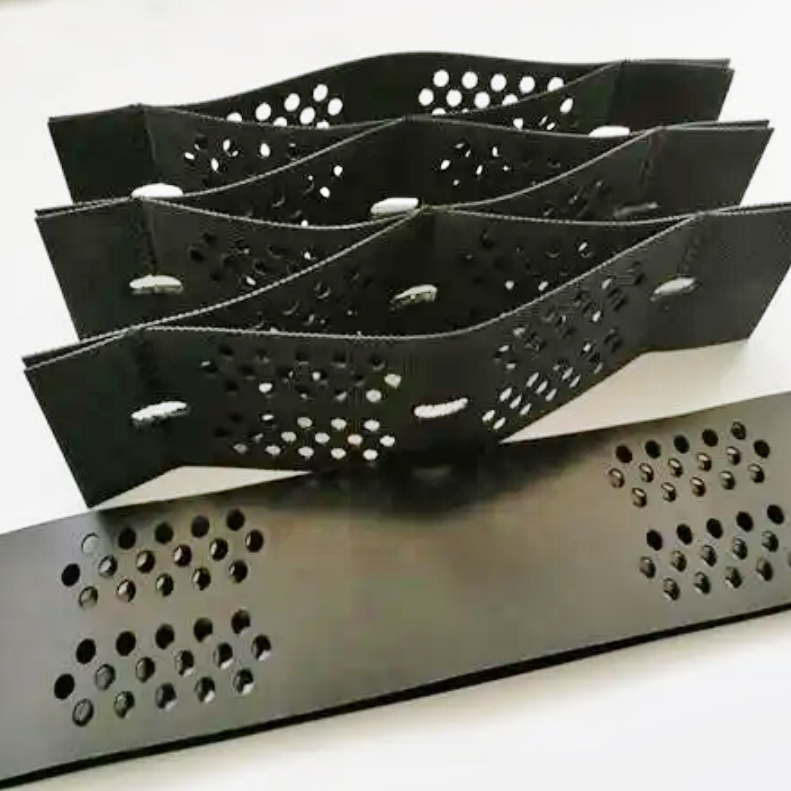

· Types by surface: Solid sheet / perforated sheet (perforated for drainage & vegetation root penetration) / textured surface (increase friction with infill)

Key Mechanical Performance

· Tensile strength of sheet ≥20kN/m

· Weld node peel strength ≥8kN/m (core index for structural durability)

· Working temperature range: -40℃ ~ +70℃

· Anti-UV, anti-acid & alkali corrosion, anti-microbial degradation; design service life ≥50–75 years

3. Working Principle: 3D Lateral Confinement

Loose sand, soil and gravel easily shift, deform and sink under vehicle or embankment load.

After geocell is expanded and filled:

· Each honeycomb cell locks infill materials to restrict lateral expansion & sliding;

· Concentrated vertical load is dispersed evenly to the subgrade, greatly improving overall stiffness;

· Form a lightweight rigid mattress, reduce foundation settlement by 40%–65%, and lift bearing capacity up to 2–3 times compared with unreinforced soil.

4. Main Advantages

① Transportation & Construction

· Foldable compression: transport volume reduced by over 80%, low logistics cost;

· Lightweight, easy unfolding by manual work, no large heavy machinery required; fast laying & filling, shorten construction period by 30%+.

② Engineering Performance

· Solve soft foundation, muddy soil, collapsible loess, desert sand stabilization;

· Anti-rutting for unpaved roads, anti-sliding & anti-erosion for steep slopes;

· Perforated version realizes natural rainwater infiltration, fit for sponge city & ecological greening.

③ Economic & Environmental

· Replace thick gravel cushion or concrete base; cut base filling thickness by 50%–80%, save aggregate consumption;

· Use local on-site soil/sand as infill, reduce quarry exploitation & transportation carbon emission by 60%–80%;

· Vegetation can grow inside cells for slope greening, realize ecological restoration; recyclable HDPE raw material.

④ Durability

Resist freeze-thaw cycles, seawater corrosion, chemical wastewater, long-term outdoor exposure without cracking or aging.

5. Wide Engineering Applications

1) Road & Traffic Engineering

· Highway/railway soft subgrade reinforcement, road widening project;

· Unpaved mine access roads, temporary construction haul roads, parking lots, driveway gravel base;

· Airport yard, container storage platform, heavy-load logistics yard stabilization.

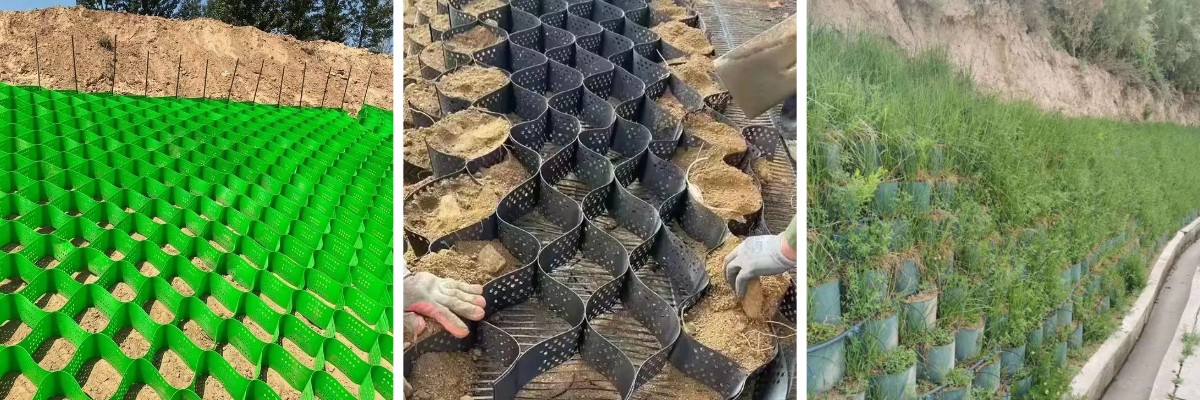

2) Slope & Embankment Protection

· Highway/railway steep slope ecological greening;

· Riverbank, reservoir channel anti-scour protection;

· Mountain cut slope, mine wasteland reclamation, desert sand fixation.

3) Retaining Wall & Landscape

· Lightweight geocell retaining wall (filled with soil & grass, landscape integrated);

· Park trail, golf course, green belt permeable pavement.

4) Water Conservancy & Municipal

· River, canal, breakwater erosion control;

· Sponge city permeable ground, rain garden, underground drainage layer;

· Landfill anti-slip covering layer.

6. Installation Brief Flow

· Level & compact subgrade, lay geotextile as separation layer (optional);

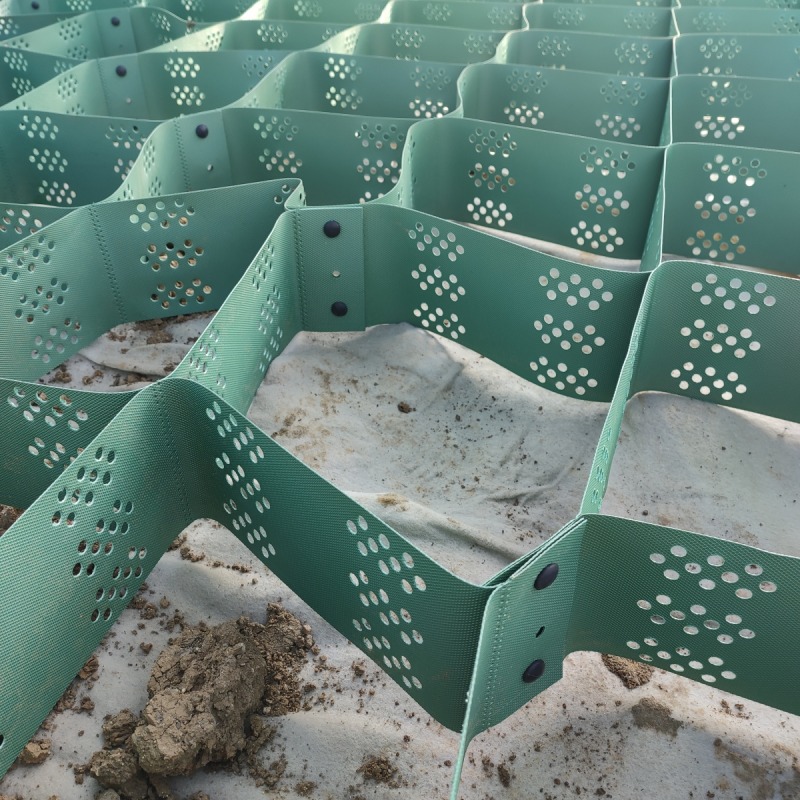

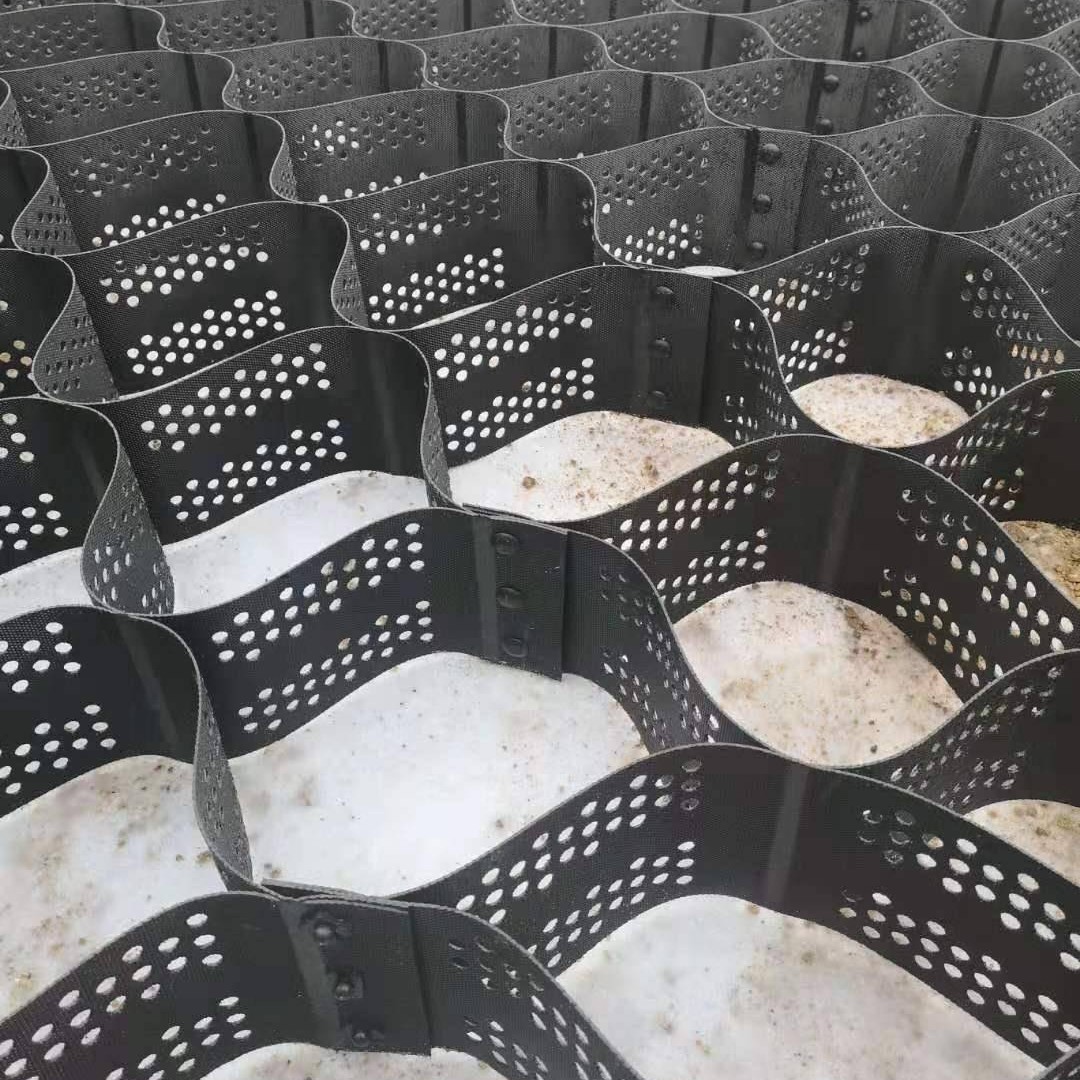

· Unfold geocell roll, fix edges with ground nails to keep stretched flat;

· Fill cells with gravel/topsoil layer by layer, compact each layer;

· Slope projects: cover surface with planting soil, sow grass seeds for vegetation reinforcement;

· Road projects: pave asphalt or concrete surface layer on top of filled geocell mattress.
