Cellular Confinement Geocell Driveway
Core Advantages
✅ Reliable three-dimensional cellular confinement effect
✅ Prevent aggregate shifting, rutting, settlement and mud pumping
✅ Suitable for permanent and temporary driveways of different load grades
✅ Two options: textured / perforated geocell for dry or wet foundation conditions
✅ Reduce required thickness of road cushion, save filling materials
✅ Accept local on-site aggregates to cut transportation costs
✅ Lightweight, easy transportation and fast field installation
Cellular Confinement Geocell Driveway
Cellular Confinement Geocell Driveway utilizes HDPE cellular confinement geocell (3D honeycomb geocell) as the core subgrade reinforcement material.

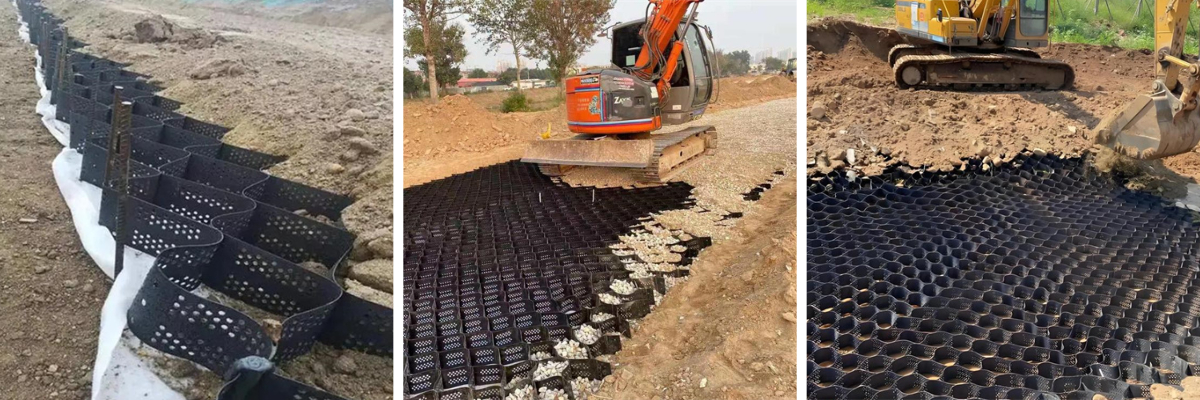

After unfolding and anchoring the geocell on the prepared foundation, the honeycomb cells are filled with crushed stone, gravel, sand or on-site soil. The cellular confinement structure provides powerful lateral confinement to lock the infill materials in place.
Under vehicle load, the confined fill forms a stiff integrated slab. It distributes traffic loads over a larger subgrade area, limits lateral displacement of aggregates, greatly reduces differential settlement, rutting and mud pumping on weak foundations such as clay and silt.
Two geocell types are available:
Textured non-perforated geocell: Preferred for heavy-duty industrial driveways, mine haul roads, provincial highway widening projects, focusing on maximum structural stiffness.
Perforated permeable geocell: Used for ecological driveways, wet low-lying zones, sponge city roads, adding drainage & rainwater infiltration capability.
This cellular confinement solution serves as an economical alternative to thick concrete, asphalt or deep soil replacement. It cuts aggregate consumption, shortens construction time and lowers overall engineering investment.
Typical Application Scenarios
Industrial plant driveways, mine haulage roads, residential gravel driveways, construction temporary access roads, farm access lanes, park service roads, highway widening subgrade reinforcement, heavy-load logistics yard passages.
1. Core Advantages
✅ Reliable three-dimensional cellular confinement effect
✅ Prevent aggregate shifting, rutting, settlement and mud pumping
✅ Suitable for permanent and temporary driveways of different load grades
✅ Two options: textured / perforated geocell for dry or wet foundation conditions
✅ Reduce required thickness of road cushion, save filling materials
✅ Accept local on-site aggregates to cut transportation costs
✅ Lightweight, easy transportation and fast field installation
2. Common Specifications
Material: High Density Polyethylene (HDPE)
Height: 100 mm, 150 mm, 200 mm
Surface type: Textured / Perforated
Welding spacing: 330 mm / 380 mm / 440 mm
Support accessory: Non-woven geotextile, metal ground anchors
