Drainage geotextile
High strength: The use of plastic fibers provides excellent tensile strength and elongation in both dry and wet environments.
Corrosion resistance: the material maintains its strength properties in soils and water with different pH values.
Good water permeability: the porous structure between the fibers allows for efficient passage and filtration of water.
Resistance to biological influences: not subject to destruction by microorganisms and insects.

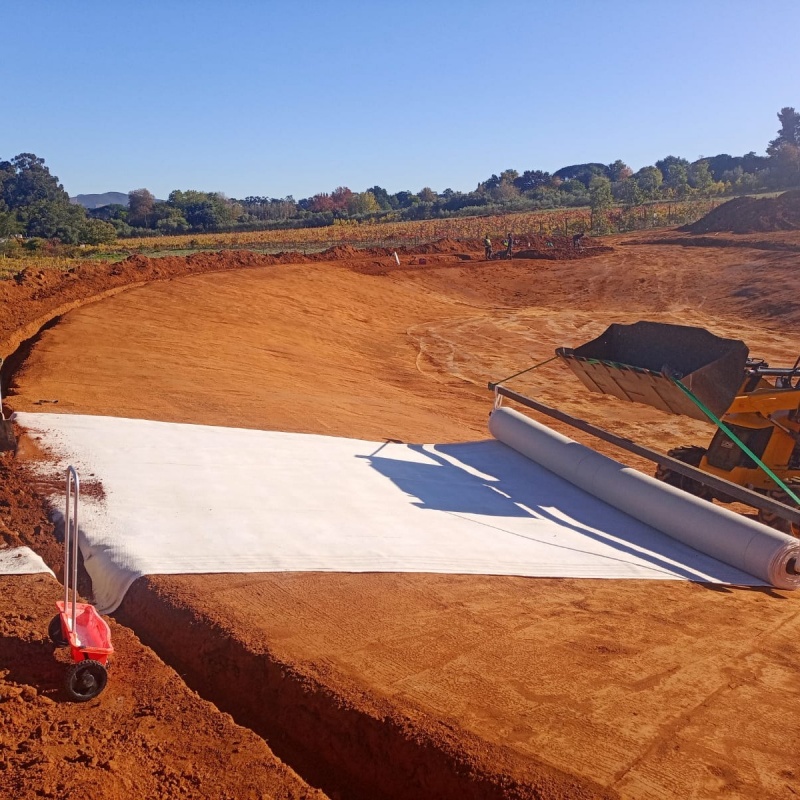

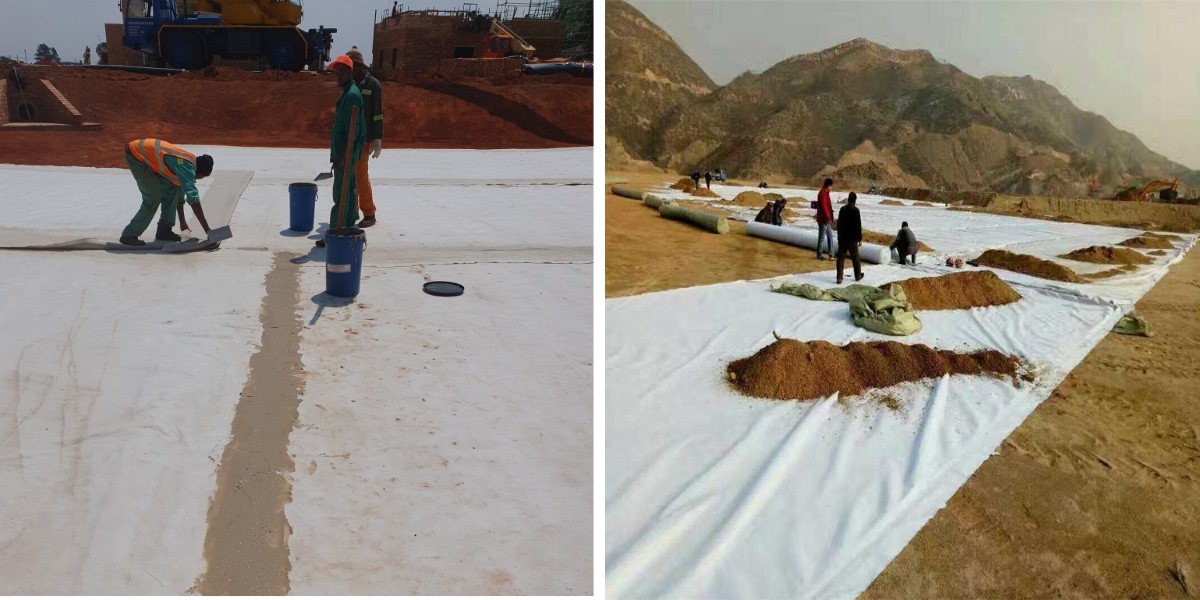

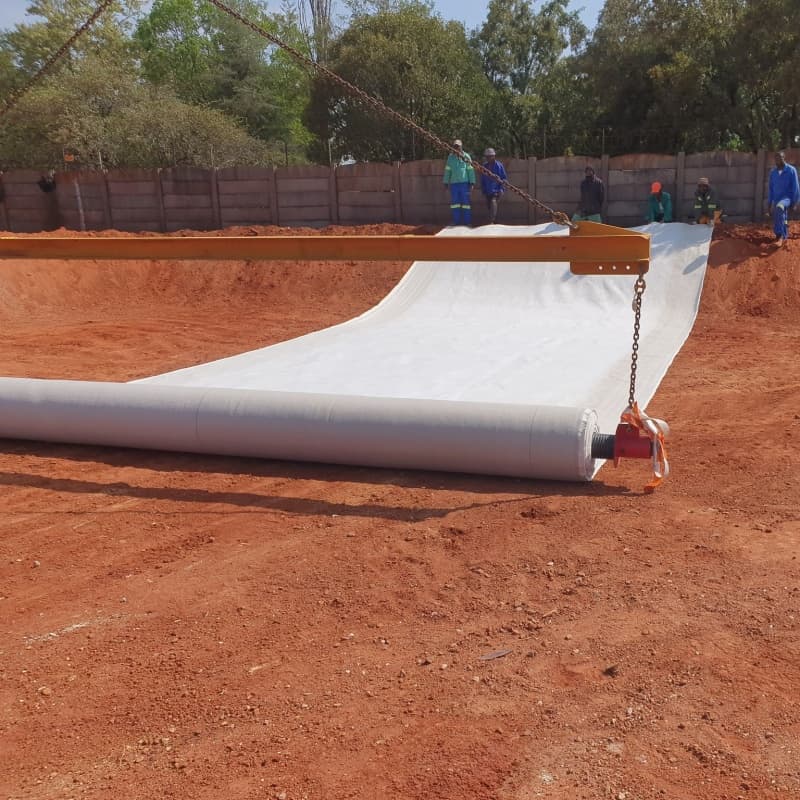

Ease of installation: low weight and high flexibility simplify transportation, installation and construction work.
A wide range of characteristics: the maximum width reaches 9 meters—one of the widest on the domestic market; surface density is 100–1000 g/m².

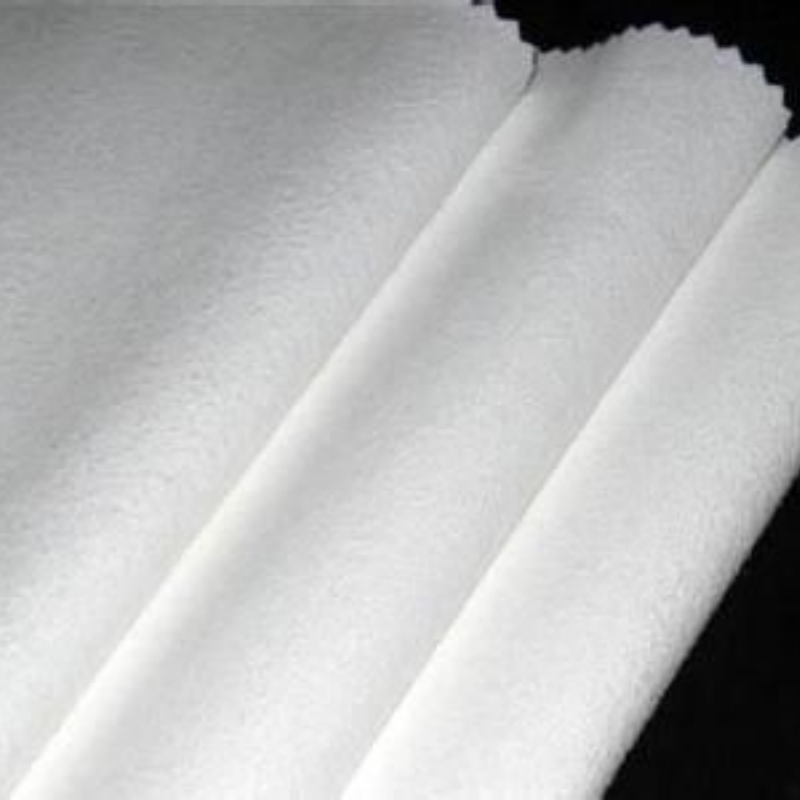

Geotextiles, also called geotextile fabric, are a permeable geosynthetic material made from synthetic fibers by needlepunching or weaving. Being one of the new types of geosynthetic materials, geotextiles are produced in rolls, usually 4–6 meters wide and 50–100 meters long. Depending on the production technology, it is divided into woven and non-woven geotextiles.
Function
Separation
Needle-punched geotextiles made of polyester staple fiber are used to separate building materials with different physical characteristics (particle size, particle size distribution, consistency, density), for example, between soil and sand or soil and concrete. This prevents mixing and leaching of materials, maintains the integrity of the structure and increases its load-bearing capacity.Filtration (reverse filtration)
When water flows from fine-grained soils to coarse-grained layers, the high water and air permeability of needle-punched geotextiles allows water to pass freely while effectively retaining soil particles, fine sand, and crushed stone, ensuring the stability of soil and hydraulic structures.Drainage
Thanks to its excellent water permeability, needle-punched geotextiles form drainage channels in the soil, facilitating the removal of excess water and gases from the soil structure.Reinforcement
The use of needle-punched geotextiles increases the tensile strength of the soil and its resistance to deformation, improving the overall stability of the structure and the characteristics of the foundation.Protection
When exposed to water flow, geotextiles effectively disperse and redistribute concentrated loads, reducing erosion and preventing soil destruction under the influence of external forces.Puncture resistance
When combined with geomembranes to form composite waterproofing and anti-seepage systems, geotextiles provide additional protection against punctures.
Applications

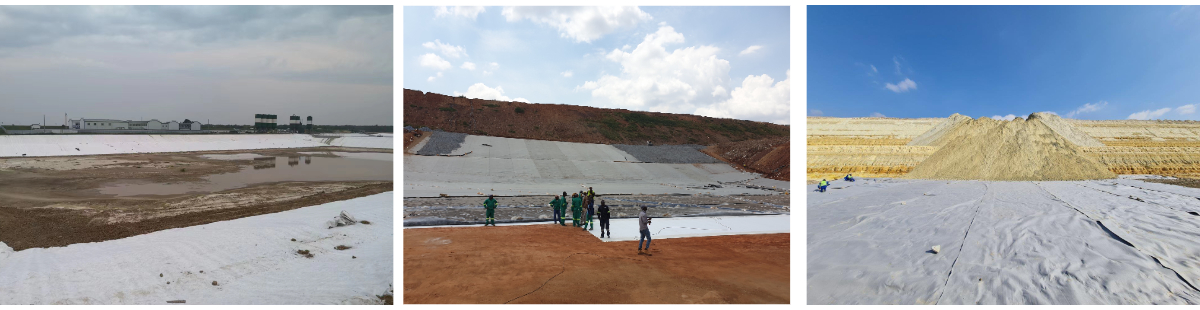

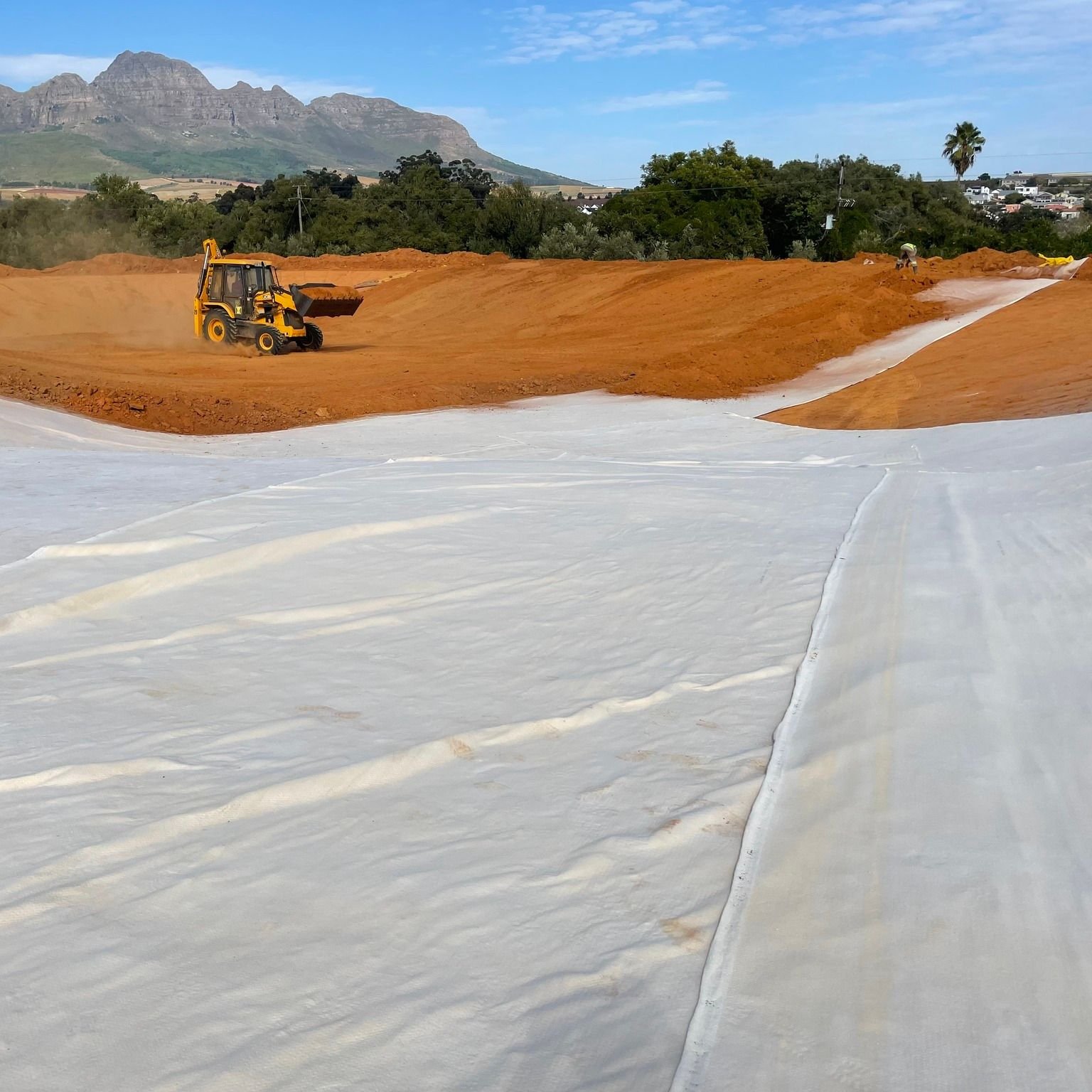

It is widely used in geotechnical construction in the fields of water management, energy, mining, as well as in the construction of roads and railways:
Filter material for separating different soil layers;

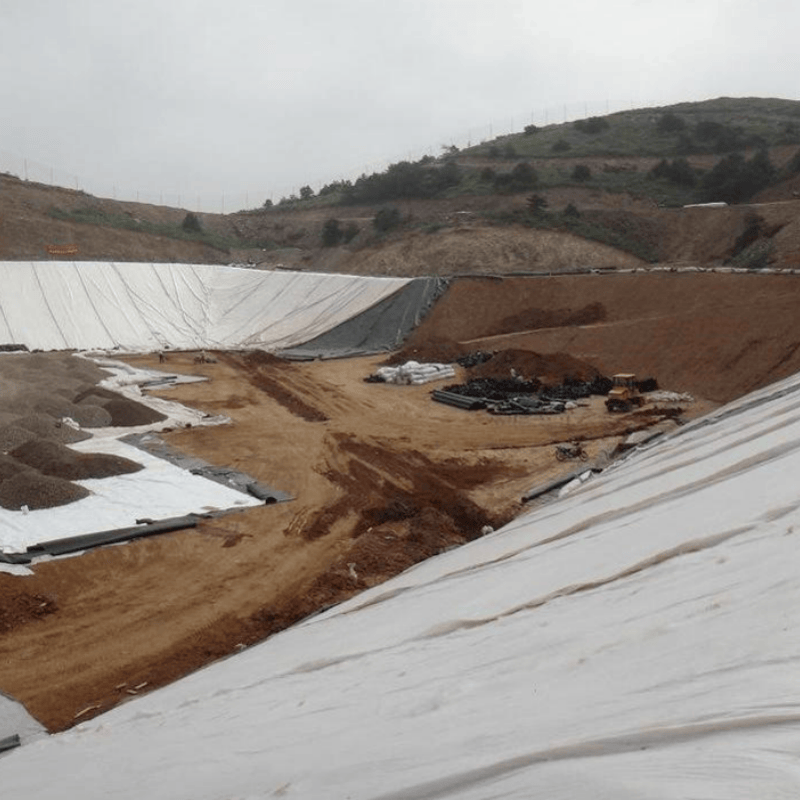

Drainage material for reservoirs, mines and foundations of high-rise buildings;

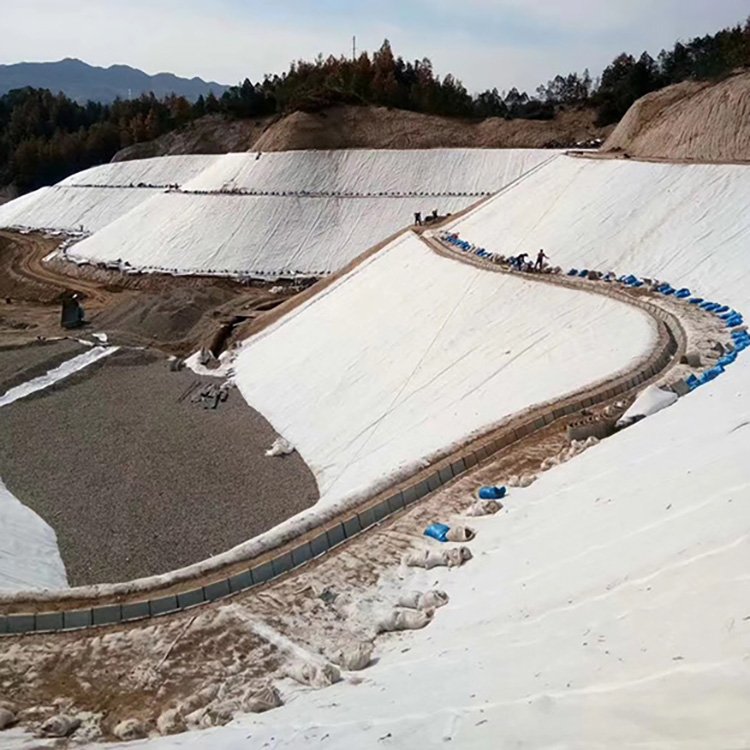

Erosion protection material for strengthening river banks and slopes;

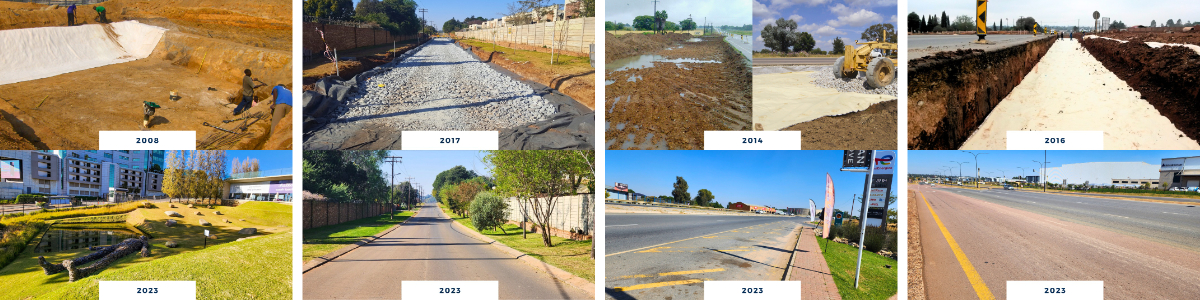

Reinforcing material for the roadbeds of railways, highways and airport runways, as well as a stabilizing material in the construction of roads on marshy and soft soils;
Insulating material for protection against freezing and frost heaving;
Material for preventing cracks in asphalt concrete pavement.
Company Profile
Shandong Yuanpeng Environmental Protection Technology Co., Ltd. was founded in 2022 with a registered capital of RMB 50 million. The company employs over 300 people, and its production facility covers 35,000 square meters. Equipped with a professional technical and R&D team, the company is a comprehensive company integrating production, sales, and after-sales service.
The company has successfully achieved ISO 9001 quality management system certification. Some of its exported products are SGS certified and hold the relevant patent certificates.
The company's main sales markets include Southeast Asia, Europe, and North and South America. Exclusive distributors operate in Indonesia and Kuwait. Due to continued business expansion, a branch of Taian YPHB, specializing in import and export operations, was opened in 2022 in the provincial capital of Jinan.
