Honeycomb geocell for slope protection

Honeycomb Geocell for Slope Protection Full Introduction

1. Product Definition & Basic Info

HDPE honeycomb geocell for slope protection, also known as erosion control cellular confinement system (CCS)

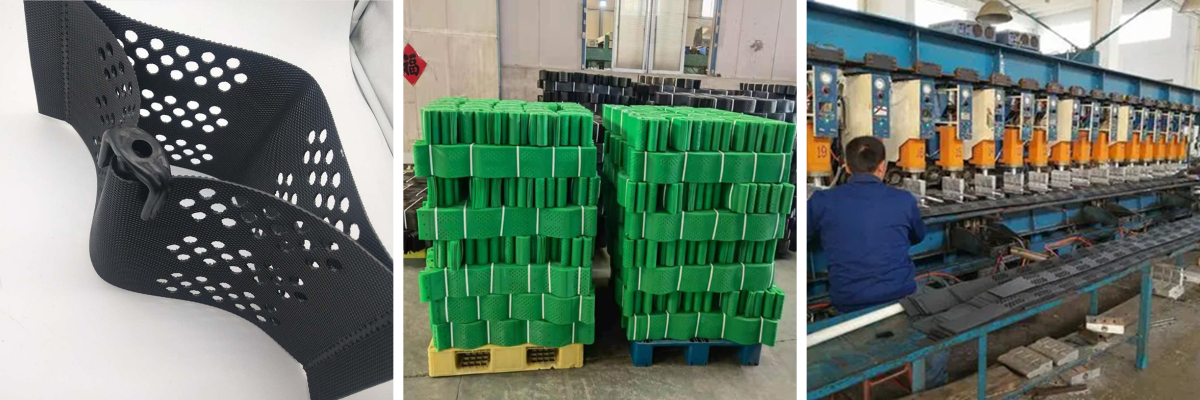

It is a special 3D honeycomb geosynthetic material exclusively designed for slope stabilization and anti-erosion works, manufactured by ultrasonic hot-welding modified UV-resistant HDPE sheets into foldable honeycomb grids.

· Core material: Virgin HDPE with anti-UV, anti-oxidant additives

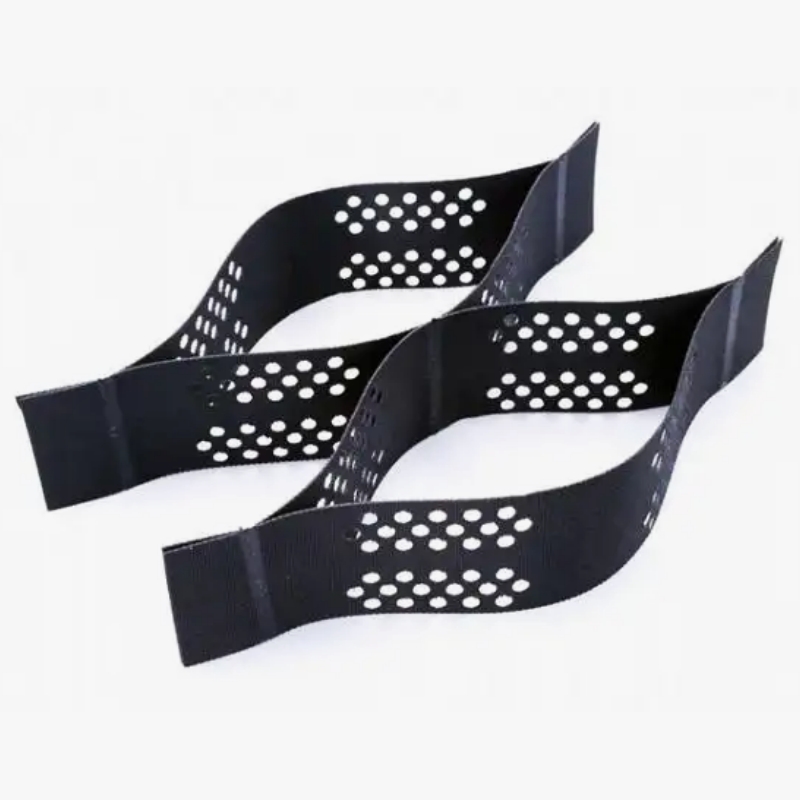

· Preferred surface for slopes: perforated textured HDPE sheet (holes for drainage & root penetration; textured surface boosts friction with soil)

· Main cell height for slope: 100mm / 150mm / 200mm (most popular: 150mm)

· Welding pitch: 400–660mm; sheet thickness 1.2–1.8mm

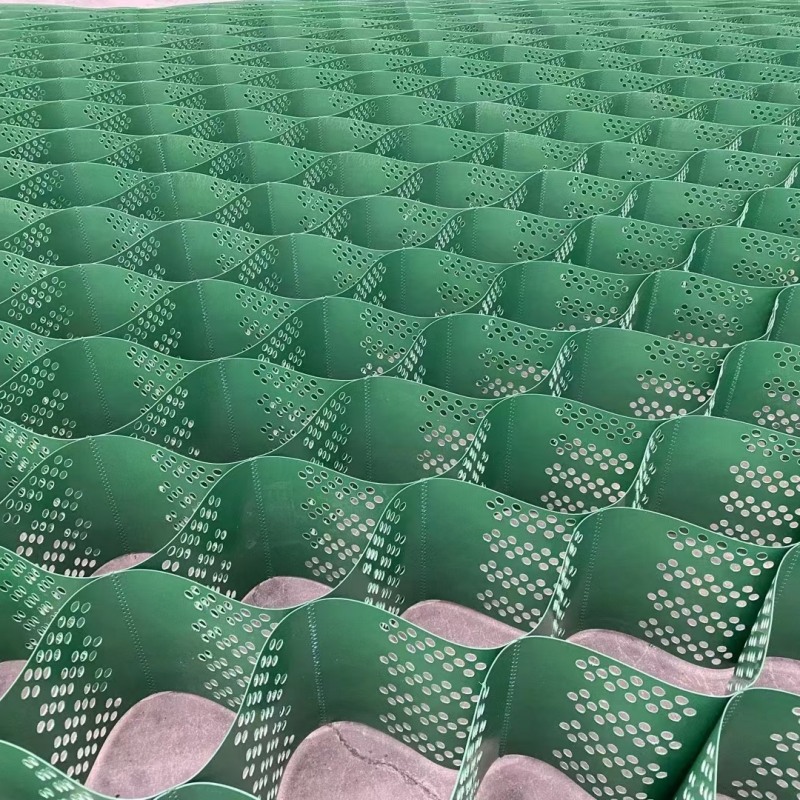

· Standard color: Black (best anti-aging); green for landscape slopes

2. Working Principle for Slope Anti-Slide & Anti-Erosion

Loose topsoil on slopes easily slides and washes away under rain runoff. The honeycomb geocell solves this via 3 core confinement mechanisms:

· Lateral Locking Confinement

Every independent honeycomb cell wraps planting soil/gravel tightly, restricts soil lateral creep and downward sliding, improves soil shear strength by 2–3 times.

· Drainage Pressure Release

Perforated holes drain rainwater inside slope rapidly, eliminate hydrostatic pressure that triggers landslides, cut runoff velocity by 40%–60%.

· Composite Reinforcement with Vegetation

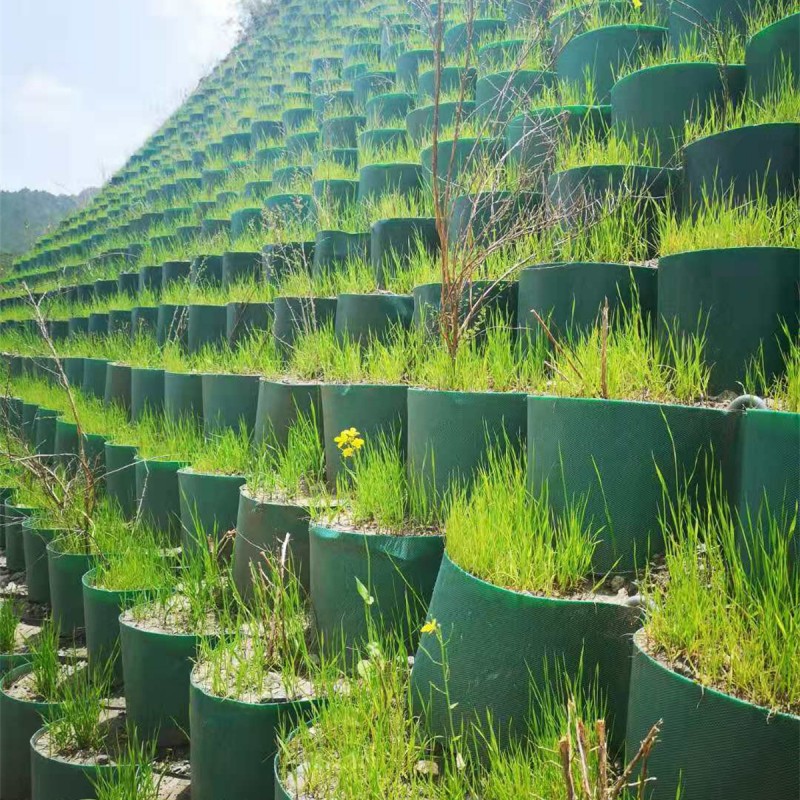

After filling topsoil and sowing grass/shrub seeds, plant roots grow through cell holes, interlock with the HDPE honeycomb to form a permanent "grid + root" dual stabilization system, long-term anti-erosion effect improves year by year.

3. Core Advantages for Slope Projects

1) Superior Slope Stability

· Suitable for steep slopes up to 1:1 gradient; works on cut slopes, fill embankments, soft muddy soil, loose sand slopes

· Effectively prevent surface collapse, gully erosion and shallow landslides; greatly reduce later slope maintenance cost

2) Ecological Greening (Biggest advantage vs concrete/riprap)

· Cells hold planting medium steadily, support grass, shrub and native vegetation growth

· No hard concrete surface; restores natural landscape, protects biodiversity, meets sponge city & environmental restoration standards

3) Low Logistics & Fast Construction

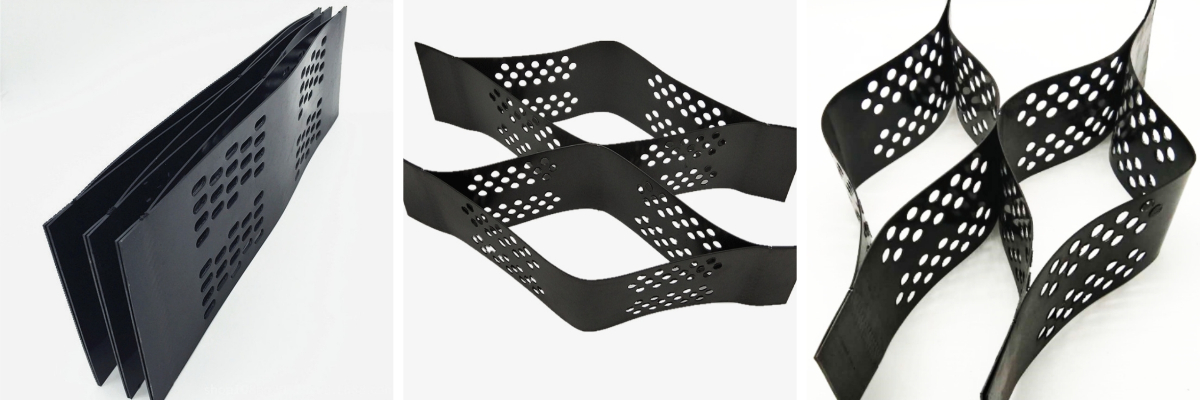

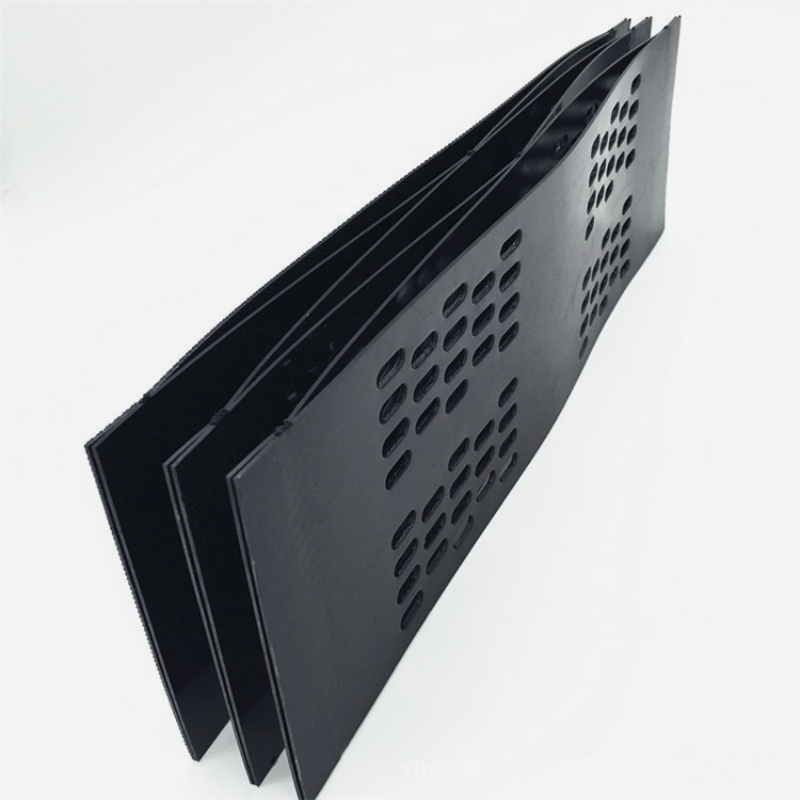

· Fully foldable before laying, transport volume reduced over 80%, save freight

· Lightweight, manual unfolding without heavy machinery; small construction crew can finish large slope area; shorten construction period by 35%+

4) Durable & Wide Adaptability

· Resist acid, alkali, salt, seawater corrosion, freeze-thaw cycles; design service life 50–75 years

· Adapt to highway, railway, river, mine, landfill, park landscape slopes; work in high-temperature, cold and coastal areas

5) Cost-Efficient

· Cheaper than concrete retaining wall, stone riprap and shotcrete slope protection

· Allow local on-site soil as infill material, cut aggregate transportation and purchase expenses by 50%+

4. Main Engineering Application Scenarios

· Transportation Infrastructure Slopes

Highway cut & fill embankments, railway side slopes, road widening slopes, mountain tunnel entrance slopes

· Water Conservancy Anti-Scour Projects

Riverbank, reservoir, channel, pond side slope protection, coastal shore stabilization

· Ecological Restoration Works

Mine wasteland reclamation, desert sand fixation, mountain damaged slope greening, landfill cover slope anti-slip

· Landscape & Municipal Slopes

Park hillside, golf course slope, residential green slope, light-weight eco retaining walls

5. Standard Slope Installation Steps

· Slope leveling & compaction; lay non-woven geotextile as separation layer to prevent soil loss

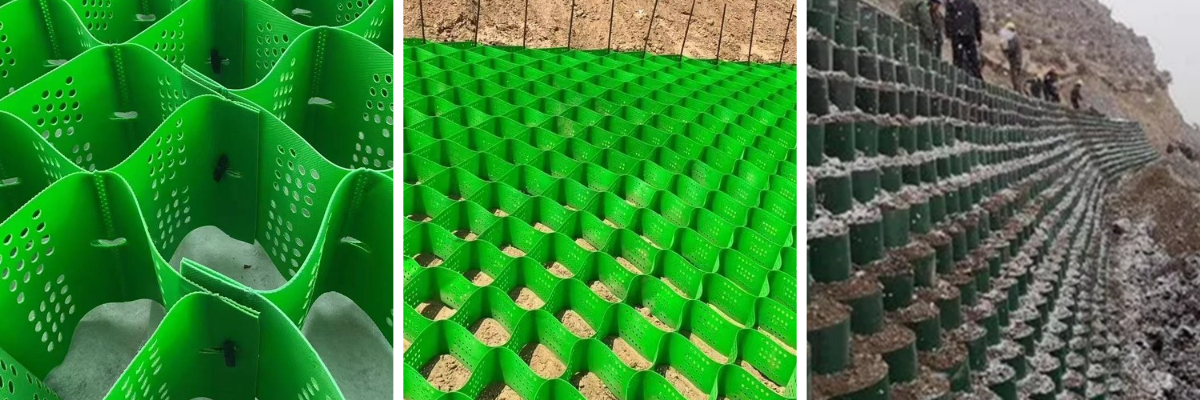

· Unfold honeycomb geocell panels along the slope contour, fix top, middle and bottom edges with steel ground nails to keep fully stretched

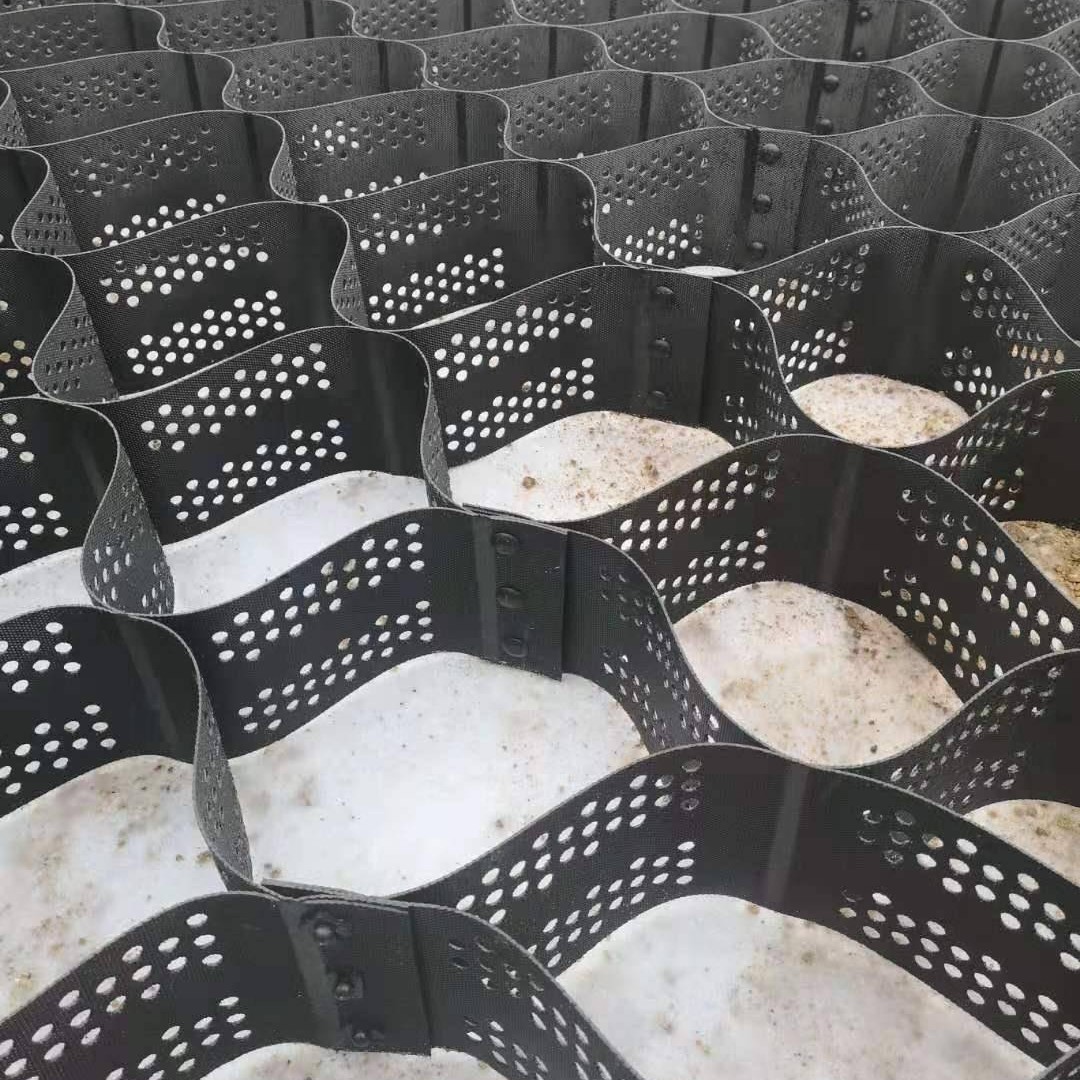

· Fill cells with fertile topsoil or mixed gravel layer by layer, slightly compact each layer

· Sow grass/shrub seeds, spray soil stabilizer or cover erosion control blanket for seed protection

· Regular watering maintenance until vegetation fully covers the slope surface
