Honeycomb cellular geomat
· Integrated full-panel design, fewer construction joints
Continuous mattress structure reduces splicing work, avoids weak gaps between separate geocell pieces, improves overall structural integrity.
· Foldable & low logistics cost
Compressed folding cuts transport volume by over 80%, saves freight for large-area slope and road projects.
· Dual functions: stabilization + ecological greening
Perforated geomat supports vegetation growth, replacing rigid concrete and stone pitching for eco-friendly slope protection.
Honeycomb Cellular Geomat Full Introduction
1. Basic Definition & Aliases
Honeycomb cellular geomat, also widely named honeycomb geocell mat / cellular confinement mattress, is a foldable large-area three-dimensional honeycomb geosynthetic mattress made of UV-stabilized modified HDPE sheets connected by ultrasonic hot welding.
It is the integrated mattress form of standard honeycomb geocell, also called a full-panel geocell mat, used for soil stabilization, slope erosion control and subgrade reinforcement.
2. Raw Material & Production Technology
· Raw material: Virgin HDPE blended with anti-UV, anti-oxidant and anti-freeze additives; black as standard color for long outdoor service life, green/tan for landscape projects.

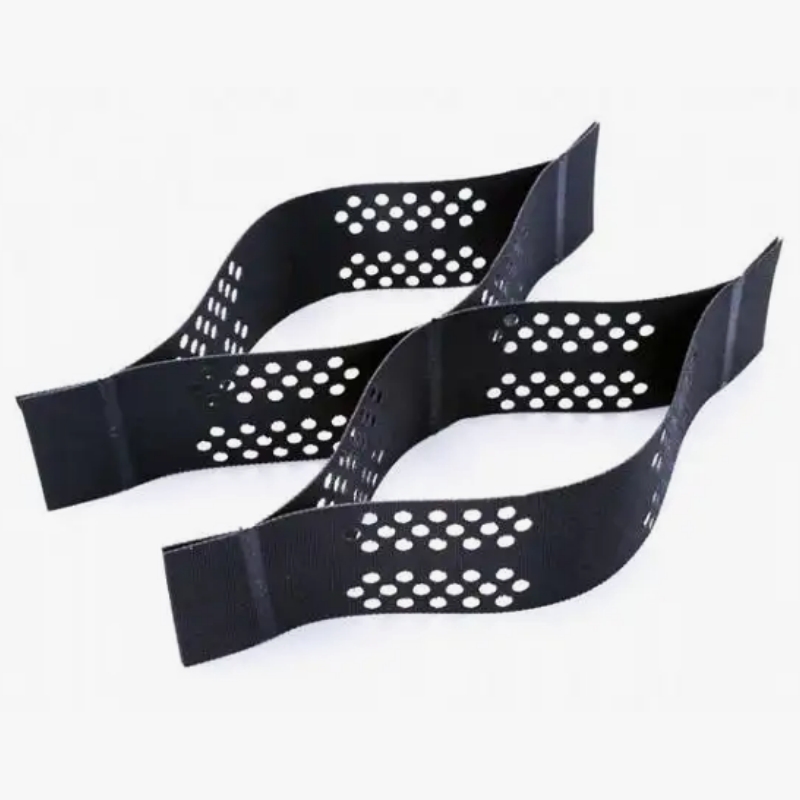

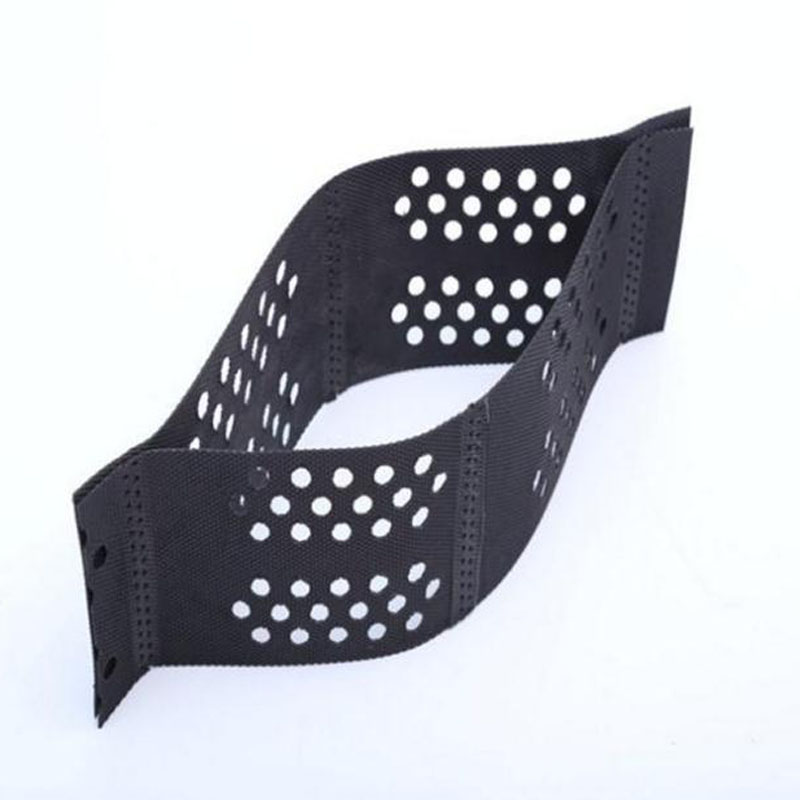

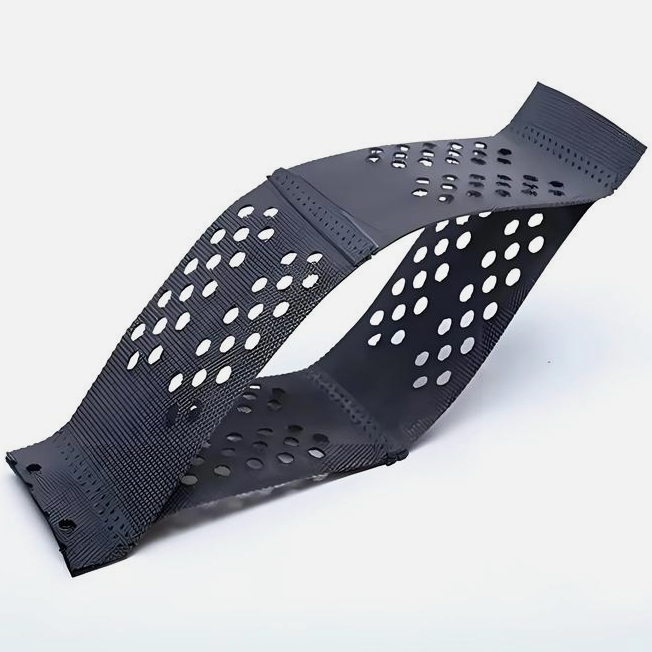

· Sheet types: Smooth, textured (embossed for friction), perforated (drainage & vegetation root penetration, mainstream for slope geomat).

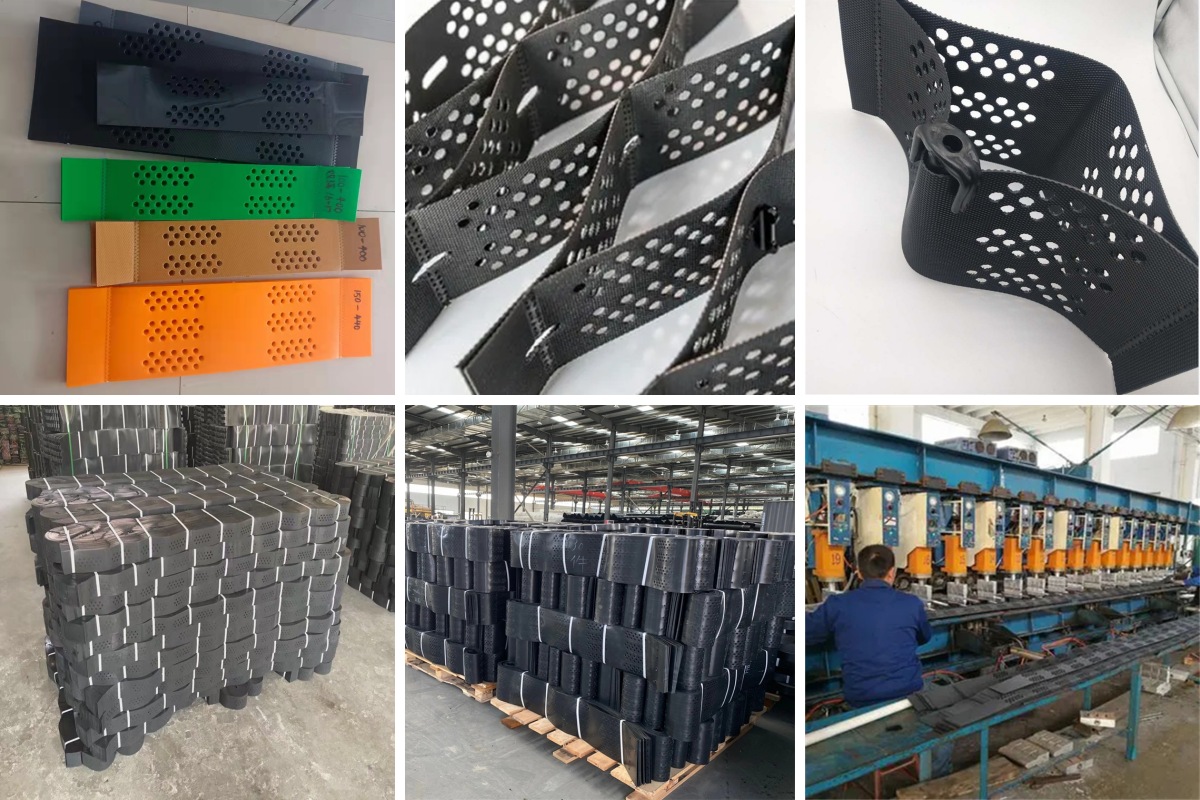

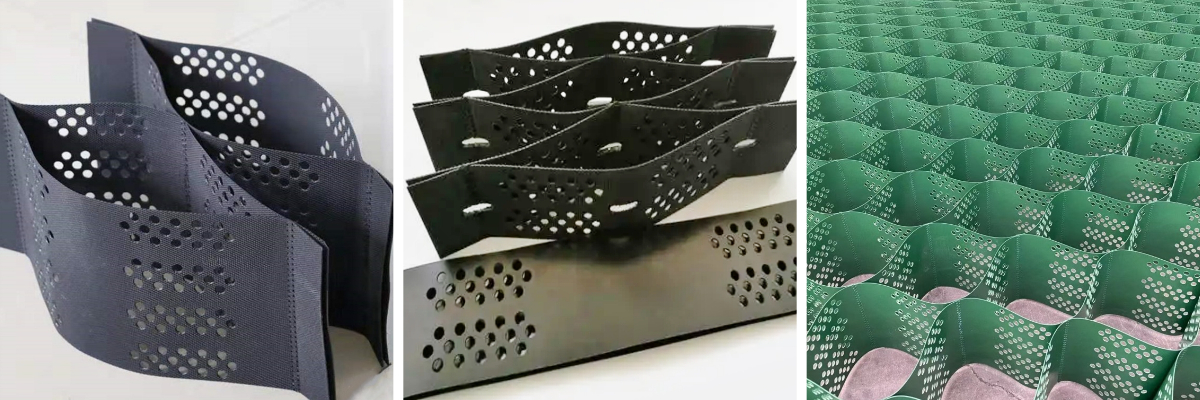

· Manufacturing: HDPE strips are welded at fixed intervals into continuous integrated honeycomb panels, fully foldable for compact transportation and quick expansion on-site.
· Core structural index: Weld joint peel strength ≥8kN/m to avoid separation under soil load.
3. Key Technical Specifications
· Cell height: 100/150/200/250/300 mm (150mm universal for slope & subgrade)
· Welding pitch (cell span): 330/400/500/660 mm
· Sheet thickness: 1.0–1.8 mm (≥1.5mm for heavy-load mine road & river bank)
· Panel size: Customizable full-width roll mattress, no splicing gaps during laying
· Hole design (perforated geomat): Uniform round holes for drainage and plant root growth
4. Working Mechanism
(1) Lateral Confinement Stabilization

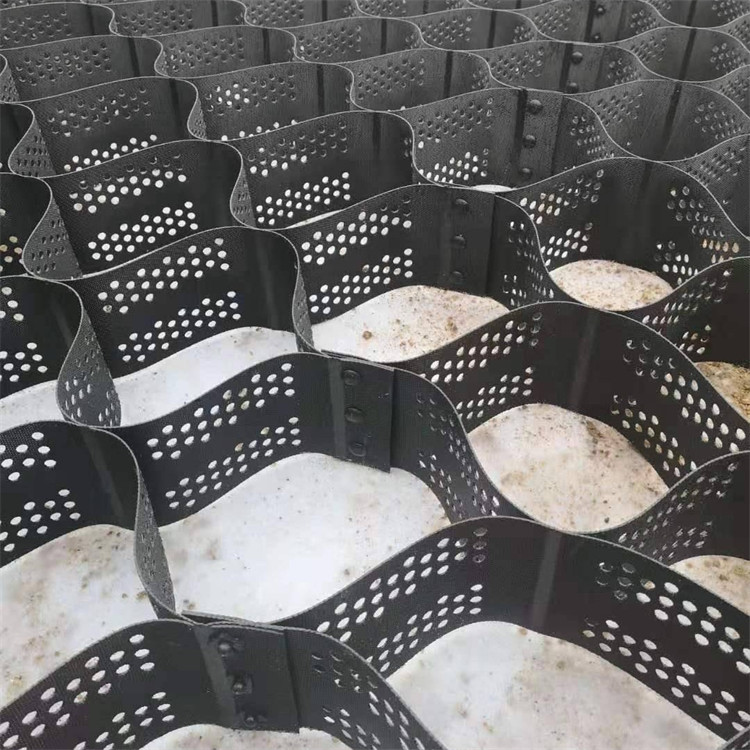

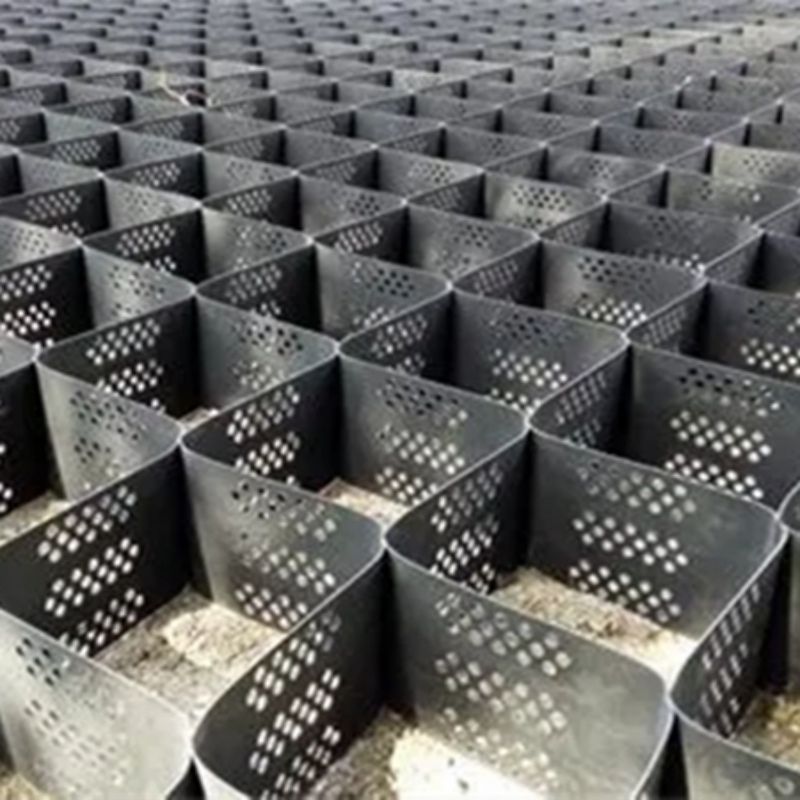

After unfolding and filling with soil, gravel or aggregate, each honeycomb cell locks filler tightly to restrict lateral sliding, greatly improving soil shear strength and forming an integral rigid load-bearing mattress.
(2) Drainage & Hydrostatic Pressure Elimination
Perforated cellular geomat quickly discharges rainwater and underground pore water, eliminating water pressure that triggers slope collapse and subgrade softening.
(3) Composite Reinforcement with Vegetation
Plant roots penetrate perforations and interlock with the HDPE honeycomb mat, forming a dual reinforcement system of soil-roots-geomat for permanent ecological protection.
(4) Uniform Load Dispersion
Scattered vertical loads are evenly distributed over a wider soil layer, reducing subgrade settlement and pavement rutting by 40%–65%.
5. Core Advantages of Honeycomb Cellular Geomat
· Integrated full-panel design, fewer construction joints
Continuous mattress structure reduces splicing work, avoids weak gaps between separate geocell pieces, improves overall structural integrity.
· Foldable & low logistics cost
Compressed folding cuts transport volume by over 80%, saves freight for large-area slope and road projects.
· Dual functions: stabilization + ecological greening
Perforated geomat supports vegetation growth, replacing rigid concrete and stone pitching for eco-friendly slope protection.
· Wide environmental adaptability
Resist acid, alkali, seawater corrosion and freeze-thaw cycles; service life reaches 50–75 years under outdoor exposure.
· Fast manual construction
Lightweight mat can be unfolded by small crews without heavy machinery, shorten construction period by 30%+.
· Cost-saving with local filling
On-site native soil/sand can be used as infill, cutting aggregate purchase and transportation costs.
6. Main Application Scenarios

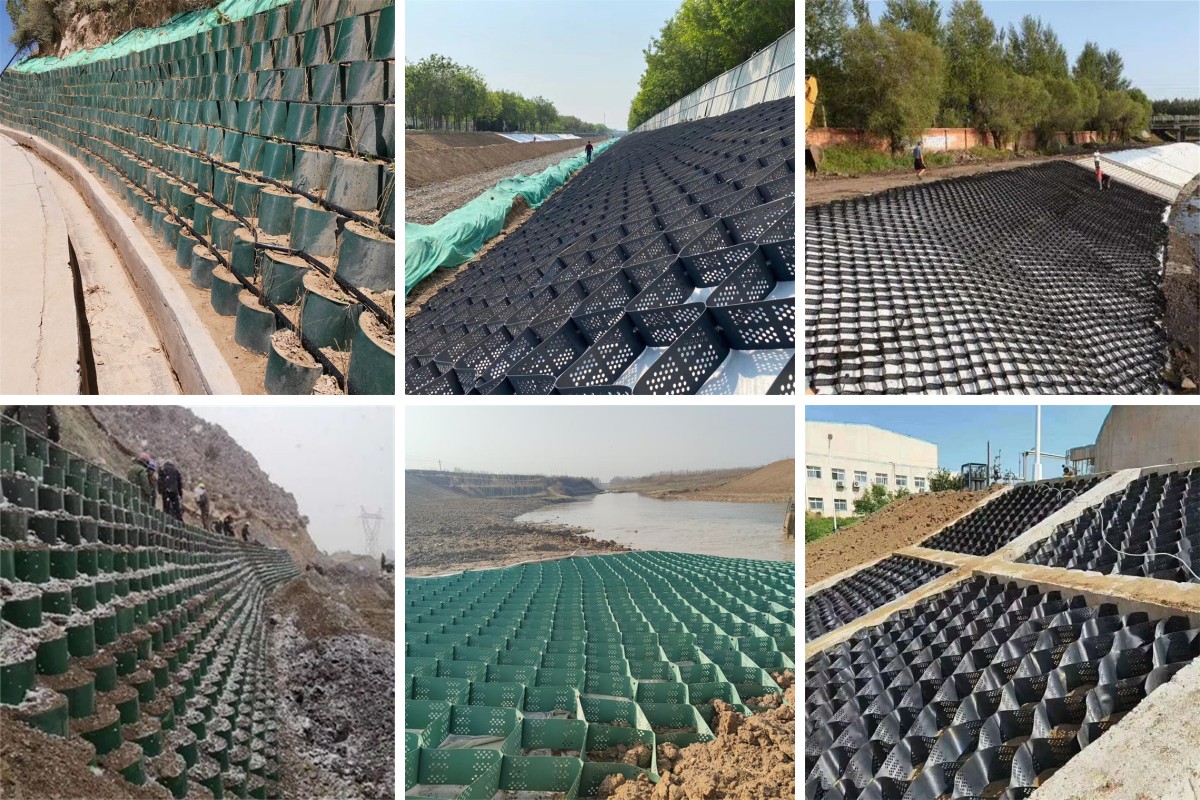

1) Slope Protection & Ecological Restoration
Highway/railway cut/fill slopes, mountain steep slopes, mine wasteland reclamation, landfill cover anti-slip slopes.
2) Water Conservancy Ecological Revetment
River, reservoir, channel, tidal flat and seawall bank anti-scour protection, adapt to seasonal water level fluctuation zones.
3) Subgrade Reinforcement
Soft soil highway subgrade, mine haul roads, logistics container yards, parking lots, temporary construction access roads.
4) Municipal & Landscape Engineering
Park scenic slopes, lightweight eco retaining walls, sponge city rain garden slopes, permeable pavement base.
