Cellular confinement systems

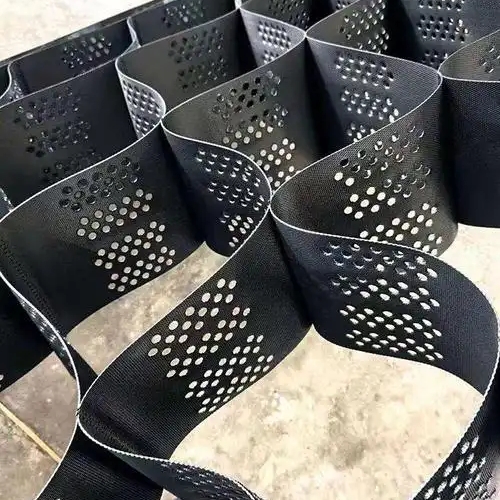

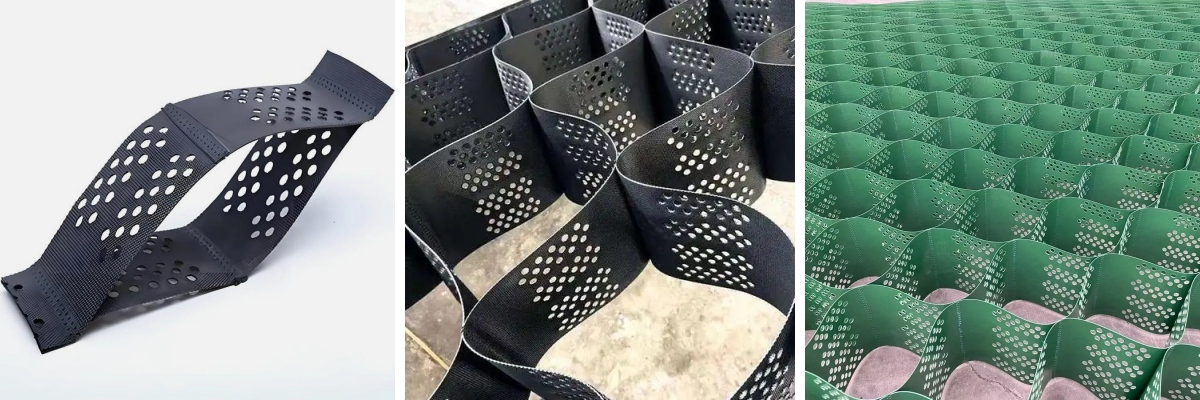

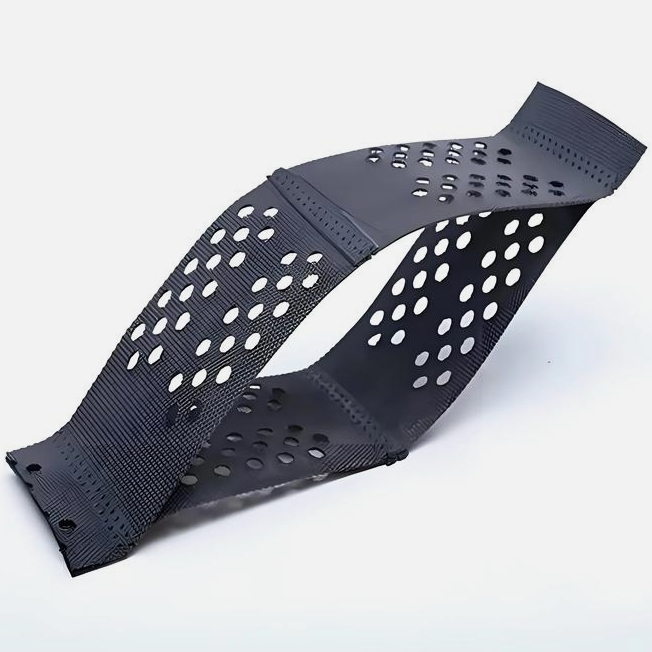

The "cellular confinement system" is an engineering term for a type of geosynthetic, referring to a three-dimensional grid structure formed by welding or connecting high-strength polymer sheets. When expanded, it resembles a honeycomb, hence the name "cellular." This system locks granular materials such as gravel, soil, or concrete within individual cell compartments, utilizing the lateral confinement effect of the cell walls to significantly enhance the integrity, load-bearing capacity, and resistance to deformation of the infill material.

I. Working Principle:‌

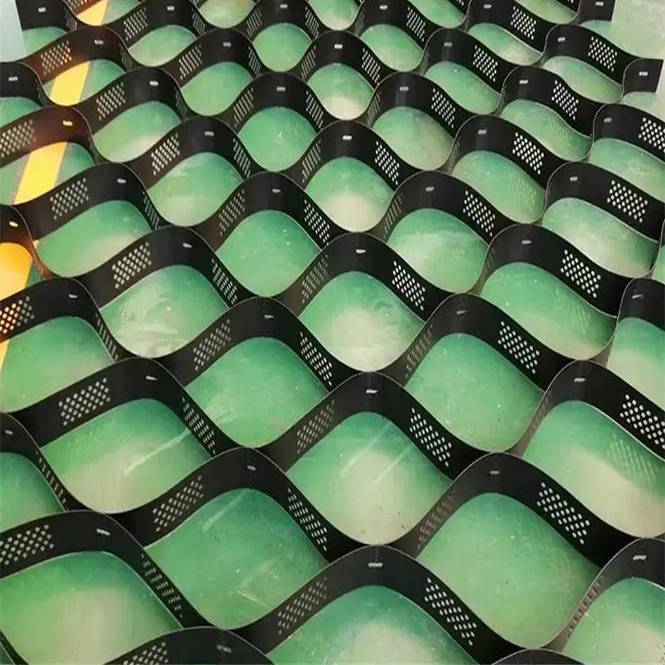

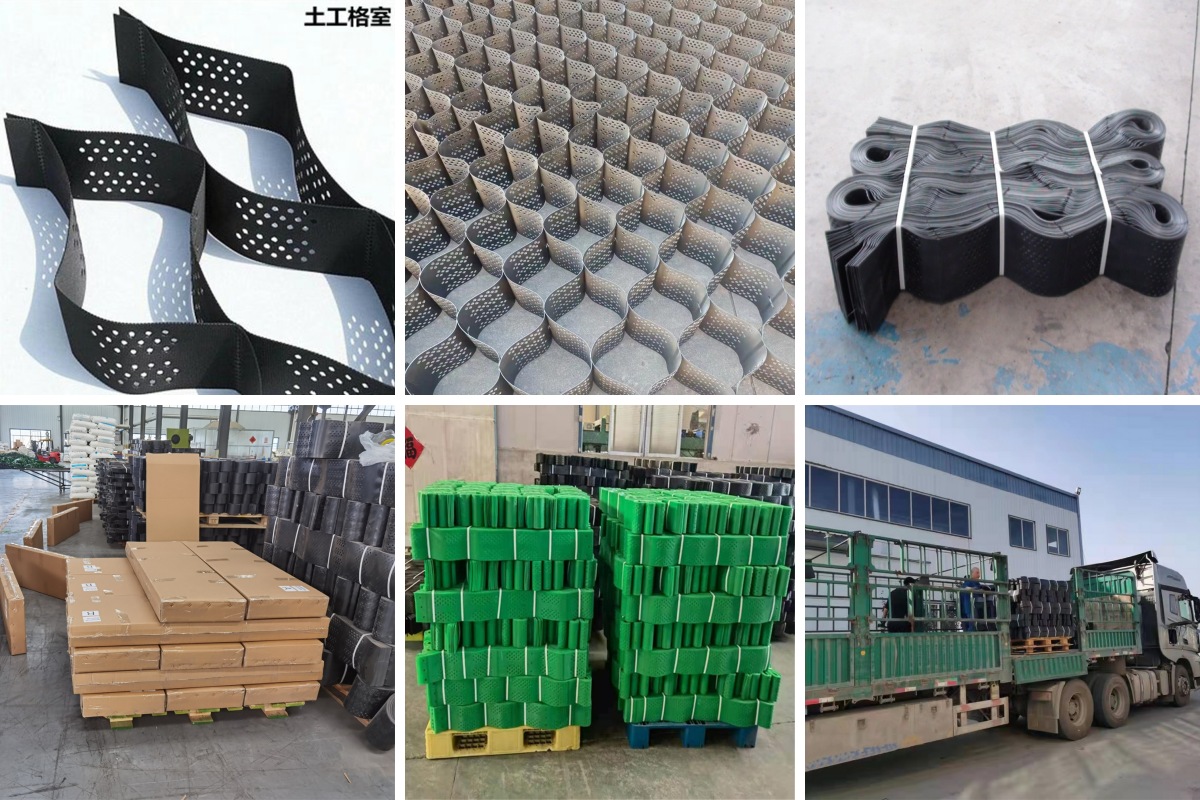

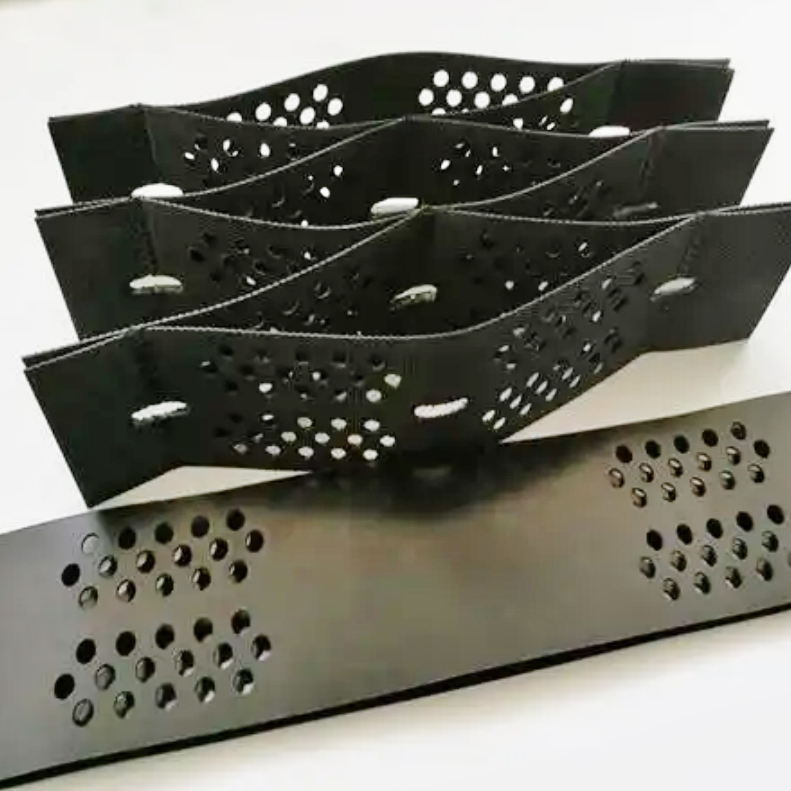

1. Structural Form:‌ When not expanded, it is in a folded state for easy transportation. During construction, it is expanded into a honeycomb-like grid and laid on the foundation or slope surface.

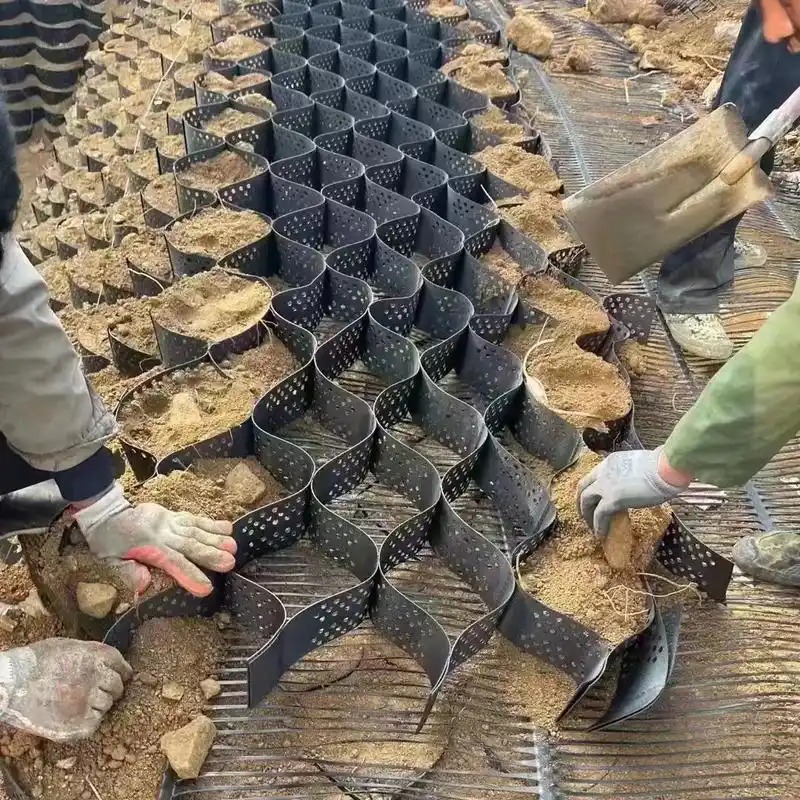

2. Filling and Confinement:‌ After filling the cells with granular materials (such as crushed stone, sand, or soil), the cell walls exert powerful lateral support force on the fill material, preventing particle lateral displacement, thereby "solidifying" the loose material into a rigid slab.

3. Mechanical Performance:‌ It can effectively distribute loads, inhibit settlement, and improve shear strength, making it particularly suitable for soft foundations, steep slope protection, and high-load roads.

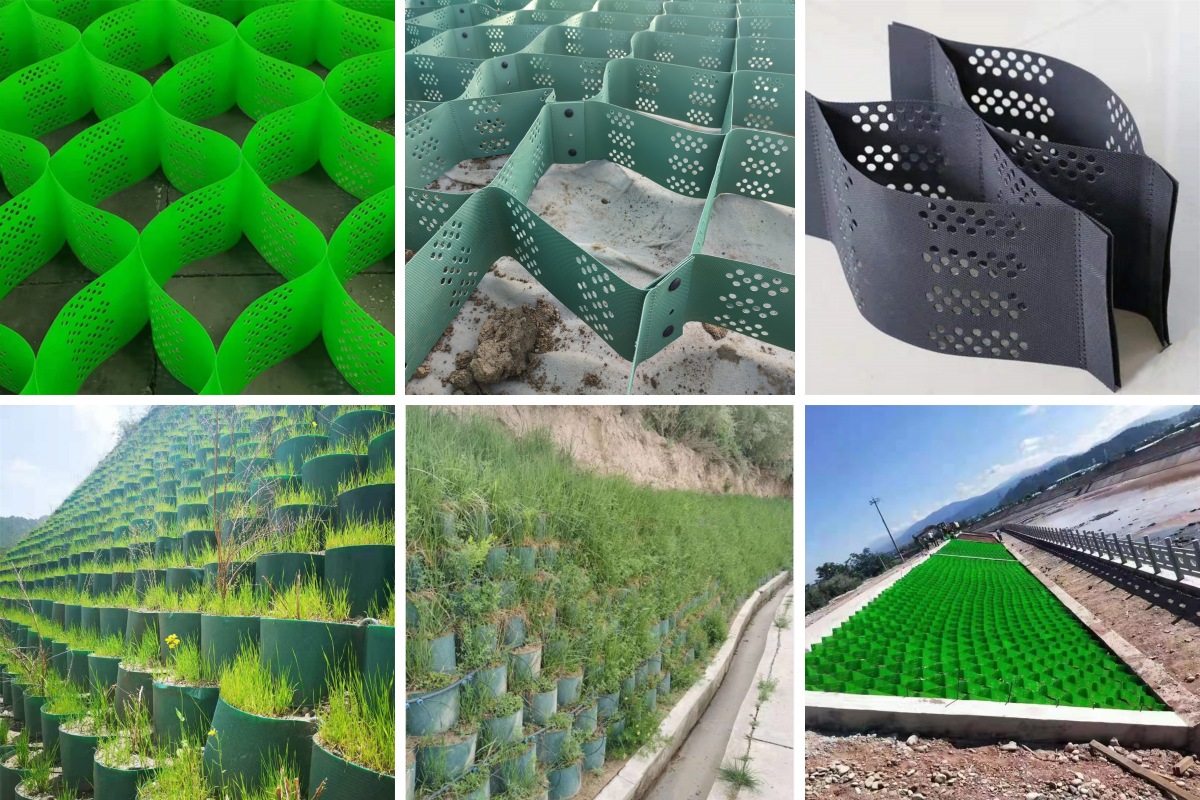

II. Applications:‌

1. Road subgrade reinforcement:‌ Installed on soft soil foundations to prevent pavement collapse caused by heavy vehicle loads.

2. Slope ecological protection:‌ Used on high embankment slopes of highways and railways to prevent rainwater erosion and landslides.

3. Temporary construction access:‌ Rapidly deployed on marshes, tidal flats, or soft ground to create temporary haul roads for heavy machinery.

4. Retaining walls and bank protection:‌ Employed as a reinforcement element in flexible retaining structures or for riverbank slope stabilization.
