What is a geogrid?

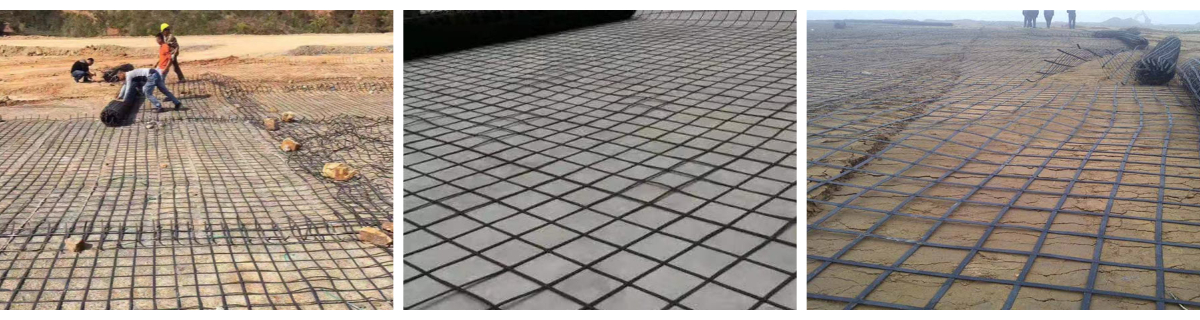

Geogrids are flat lattice structures formed by oriented stretching or weaving of polymers such as polypropylene or polyester. They are the fundamental elements of the geosynthetic family of materials, specializing in reinforcement and strengthening.
Simply put, they function as a high-strength "plastic mesh" or "fiber mesh" with uniform cells. When embedded in the soil, their interconnected cells bond with soil particles and aggregates, significantly increasing the overall strength and stability of the soil mass.
Basic characteristics and principles of reinforcement
The exceptional efficiency of reinforcement is due to the unique design:
Mesh structure: uniform mesh cells (ranging in size from centimeters to tens of centimeters) create ideal “grip” for soil and rocks.
High-strength ribs: Longitudinal and transverse ribs serve as the main load-bearing elements, demonstrating tensile strength significantly superior to traditional materials.
Interaction: When soil and rock fill the mesh cells and compact, they form a strong bond. Under load, the soil transfers stress to the mesh. The high tensile strength of the mesh creates counteracting retaining forces, limiting lateral movement and soil settlement, effectively "anchoring" it.
Main functions and main areas of application
Based on these principles, its primary functions are reinforcement, protection, and stabilization. Its applications are extremely diverse:

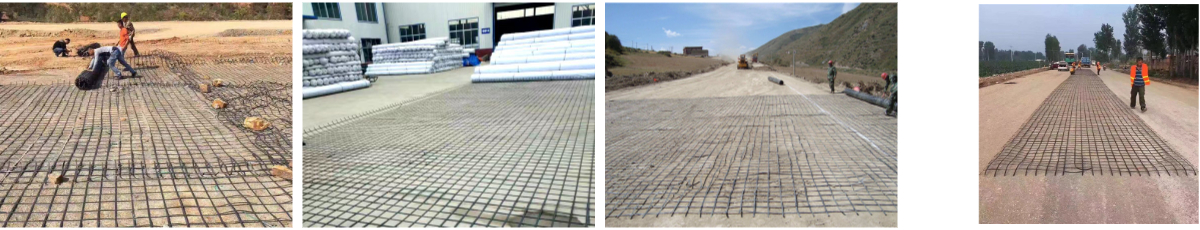

Strengthening weak foundations: When constructing roads or parking lots on soft ground, laying geogrids effectively distributes loads, preventing uneven settlement and cracking of the road surface.
Embankment and steep slope stabilization: Used in the construction of high embankments, railway foundations and steep slopes, it significantly improves slope stability, prevents landslides and allows the design of steeper and more land-efficient slopes.
Construction of reinforced earth retaining walls: when combined with soil backfill, it allows the construction of vertical or near-vertical retaining walls, replacing traditional concrete walls, saving money and space.
Reflective Crack Treatment in Pavement: Fiberglass or polyester geogrids placed under asphalt pavement or existing pavement effectively absorb and distribute loads, delaying the formation of reflective cracks.
To quickly get a general idea, let's first understand the main types:
| Type | Main raw materials | Main Features | Typical Applications |
|---|---|---|---|
| Plastic geogrid | Polypropylene (PP), high-density polyethylene (HDPE) | High tensile strength, corrosion resistance, light weight, forms high-strength longitudinal and transverse ribs with nodal points when stretched. | Strengthening of weak soils, reinforcement of road surfaces, protection of slopes, general construction works. |
| Steel-plastic geogrid | Steel wire with polyethylene/polypropylene coating | Extremely high tensile strength, low creep, high rigidity, considered a "heavy-duty version" of plastic geogrid. | Heavy-duty railway tracks, highways, retaining walls, steep slopes with special requirements. |
| Fiberglass geogrid | Fiberglass + asphalt pavement | Extremely high tensile strength, no long-term creep, heat resistance, excellent physical and chemical stability. | Anti-crack protection of asphalt concrete pavements, reconstruction of old roads, cement concrete pavements. |
| Polyester Warp Knitted Geogrid | Polyester fibers (PET) | Good flexibility, high tensile strength, excellent adhesion to asphalt. | Reinforcement of asphalt concrete pavements, railway tracks, embankment strengthening. |
Thus, when projects face severe stability and load-bearing issues that require the use of high-strength materials to “fix” the soil and form a strong structure, geogrids are typically the solution of choice.
