Introduction to HDPE Geocell for Driveways
Introduction to HDPE Geocell for Driveways

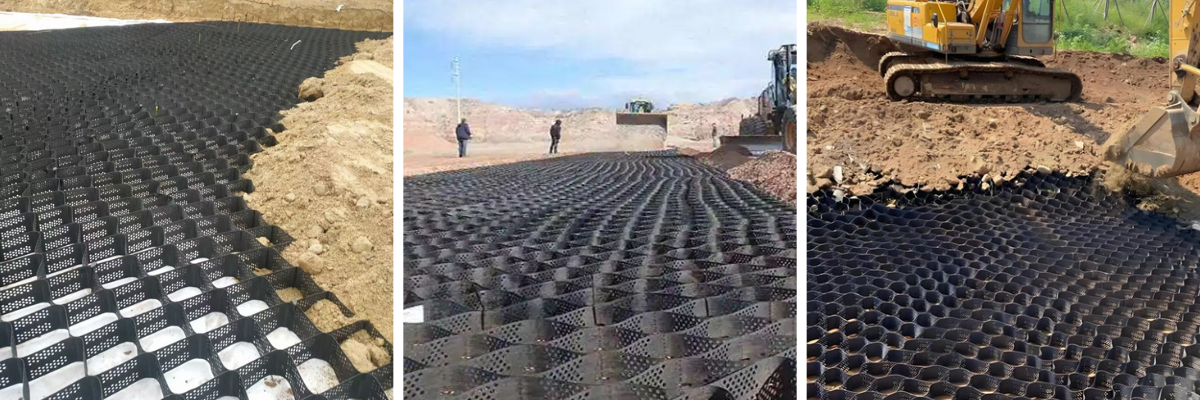

HDPE geocell driveway is a permeable ground stabilization paving system adopting cellular confinement technology. It is fabricated from high-density polyethylene (HDPE) strips, welded by ultrasonic welding to form expandable 3D honeycomb panels. After unfolding and anchoring on compacted subgrade, fill the honeycomb cells with crushed stone/gravel and compact, the geocell locks aggregate particles and restricts lateral displacement, turning loose gravel into a semi-rigid composite slab for driveway load support.
Working Principle
The HDPE honeycomb cells provide **3D lateral confinement**. When vehicle load applies on the surface, cell walls prevent gravel from spreading sideways. The point load is distributed to a wider subgrade area, greatly reducing vertical settlement, rutting and potholes. Perforated cell walls allow rainwater infiltration, achieving permeable pavement function and avoiding ponding and mud pumping on driveway surface.
Key Material & Technical Specs
- Raw material: UV-stabilized virgin HDPE with carbon black anti-oxidant
- Cell height (common for driveway): 50mm /75mm /100mm /150mm
- Sheet thickness:1.1~1.5 mm
- Welding spacing: 300~800 mm
- Tensile strength ≥18 kN/m; weld strength ≥14 N/cm
- Temperature range: -40℃ ~ +60℃
- Surface: smooth / textured; optional perforated holes for drainage
- Service life: 20–25 years under buried condition
