Perforated Honeycomb Geocell Applied to Highway Embankment Ecological Slope Protection Engineering

Perforated Honeycomb Geocell Applied to Highway Embankment Ecological Slope Protection Engineering

1. Project Background

A mountain provincial highway reconstruction project. The cutting slope gradient reaches 40~45°, silty sand soil. Heavy seasonal rainfall easily triggered surface gully erosion and shallow sliding. Traditional concrete hard revetment damaged landscape and failed to realize greening.

2. Main Challenges

· Rainwater infiltration generates hydrostatic pressure inside slope;

· Need permanent vegetation restoration;

· Require flexible structure to adapt minor slope deformation.

Selected Product

HDPE perforated honeycomb geocell, height 150mm, sheet thickness 1.2mm, perforated textured surface, weld peel strength ≥8kN/m.

Construction Scheme

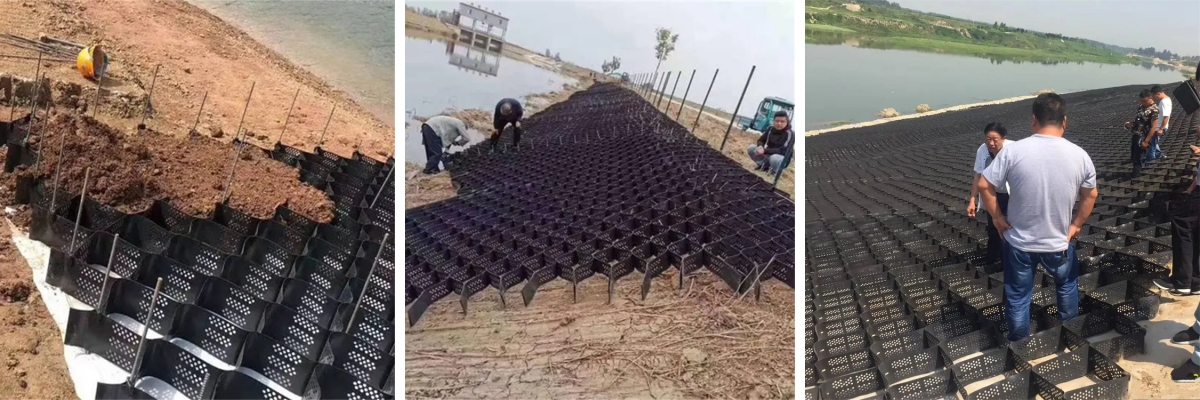

Slope trimming → Lay non-woven geotextile → Unfold & anchor perforated geocell with U-nails → Fill planting soil → Hydro-seeding mixed with grass & shrub seeds.

Project Effect

✅ Drainage holes discharge pore water continuously and eliminate water pressure risk;

✅ Plant roots penetrate perforations to form soil-root-geocell composite reinforcement;

✅ Vegetation coverage exceeds 92% within 6 months; no erosion or sliding observed after 3 rainy seasons.
